Exploded View

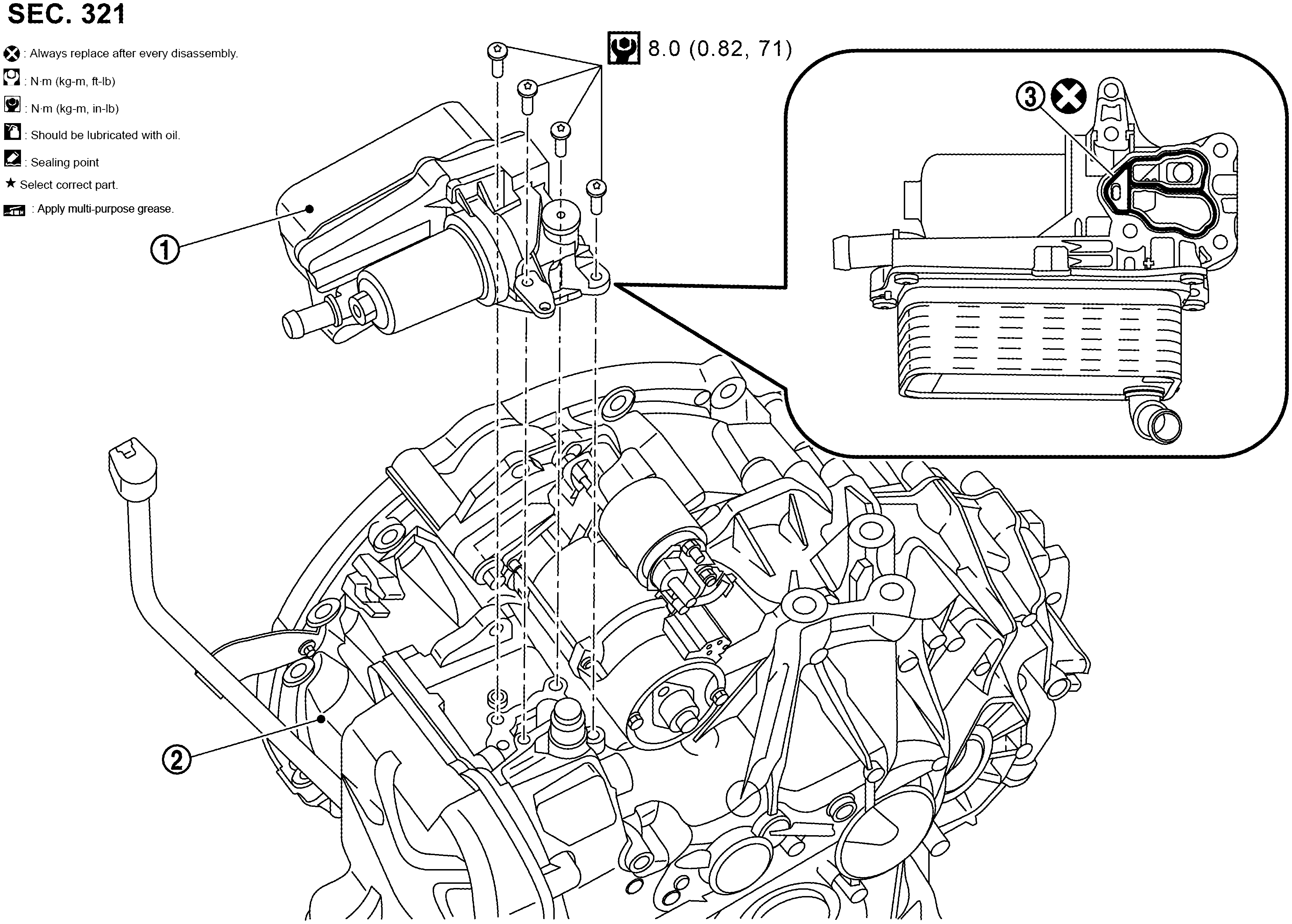

Fig 1: Transaxle Cooling Module Components Location With Torque Specification
GNSJSDIA8944GB-944Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Transaxle cooling module

SYMBOL

Transaxle assembly

SYMBOL

Seal

SYMBOL

: Always replace after every disassembly.

SYMBOL

: N.m (kg-m, in-lb)
