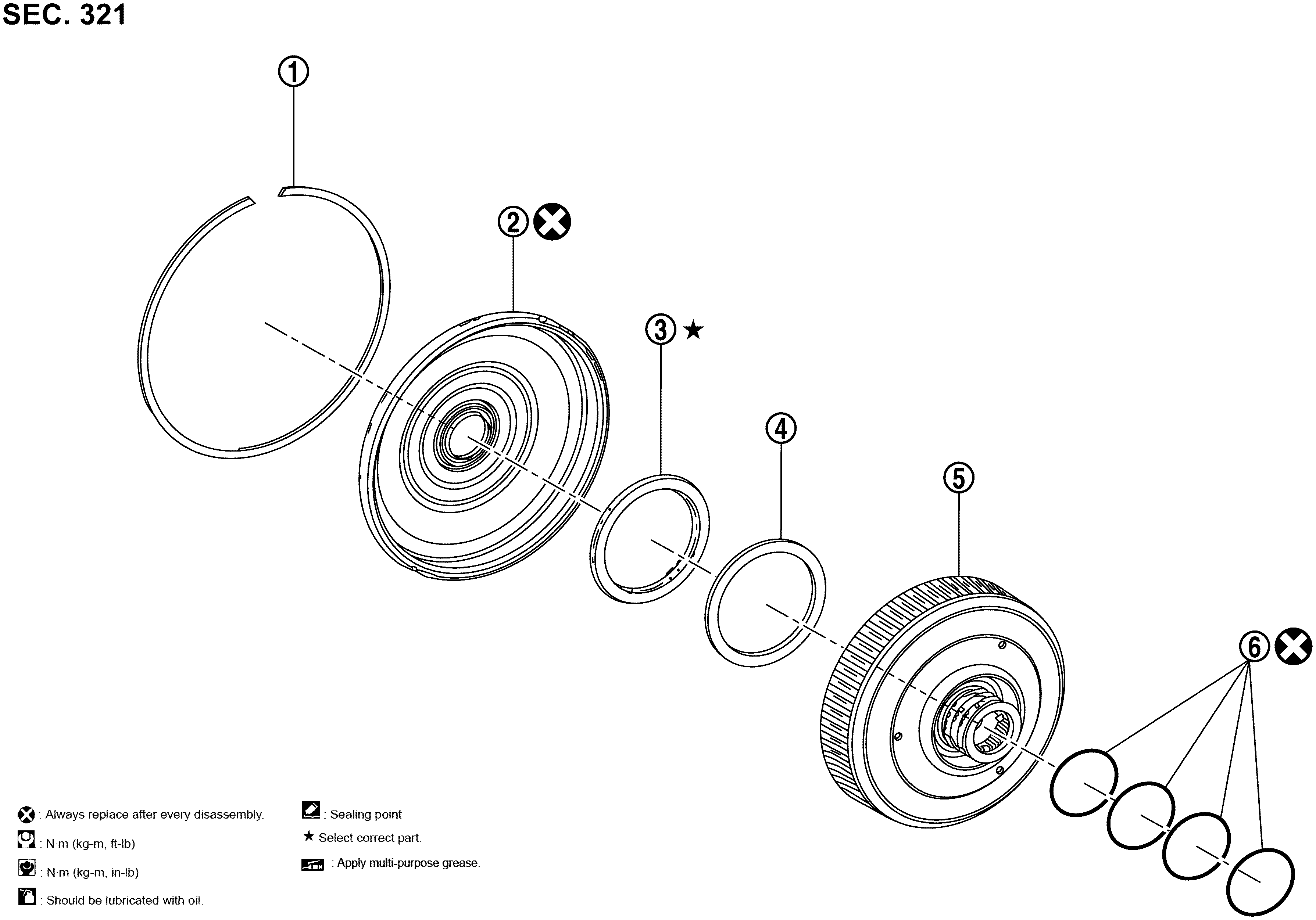

Exploded View

GNSJSDIA8933GB-933

Courtesy of NISSAN NORTH AMERICA, INC.

	Snap ring		Cover		Shim
	Bearing		Dual clutch		Sealing ring
	: Always replace after every disassembly.
	: Select with proper thickness.
