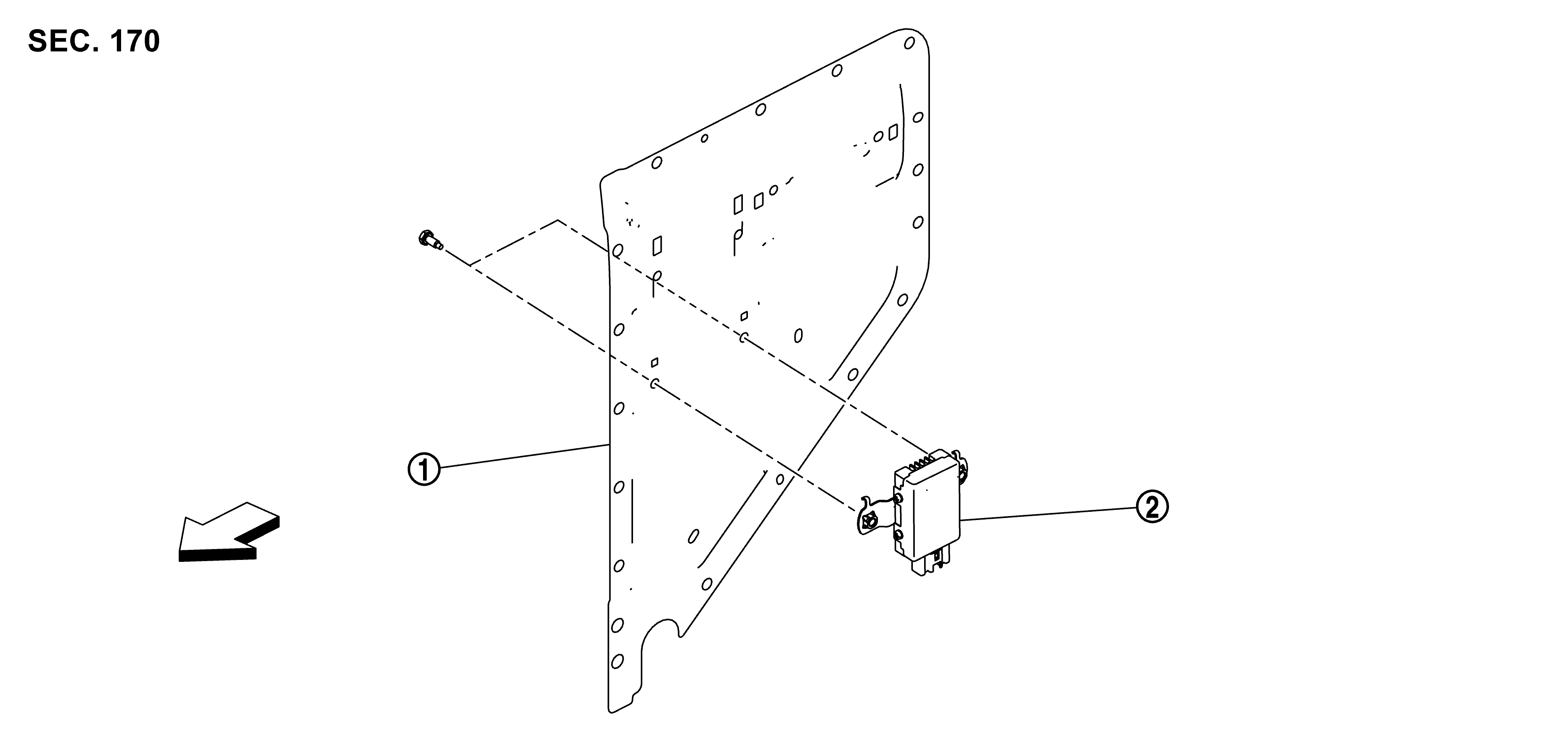

FUEL PUMP CONTROL MODULE (FPCM) : Exploded View

GNSJSBIB0545Z-545

Courtesy of NISSAN NORTH AMERICA, INC.

	Rear pillar inner reinforcement LH		Fuel pump control module
	: Vehicle front
