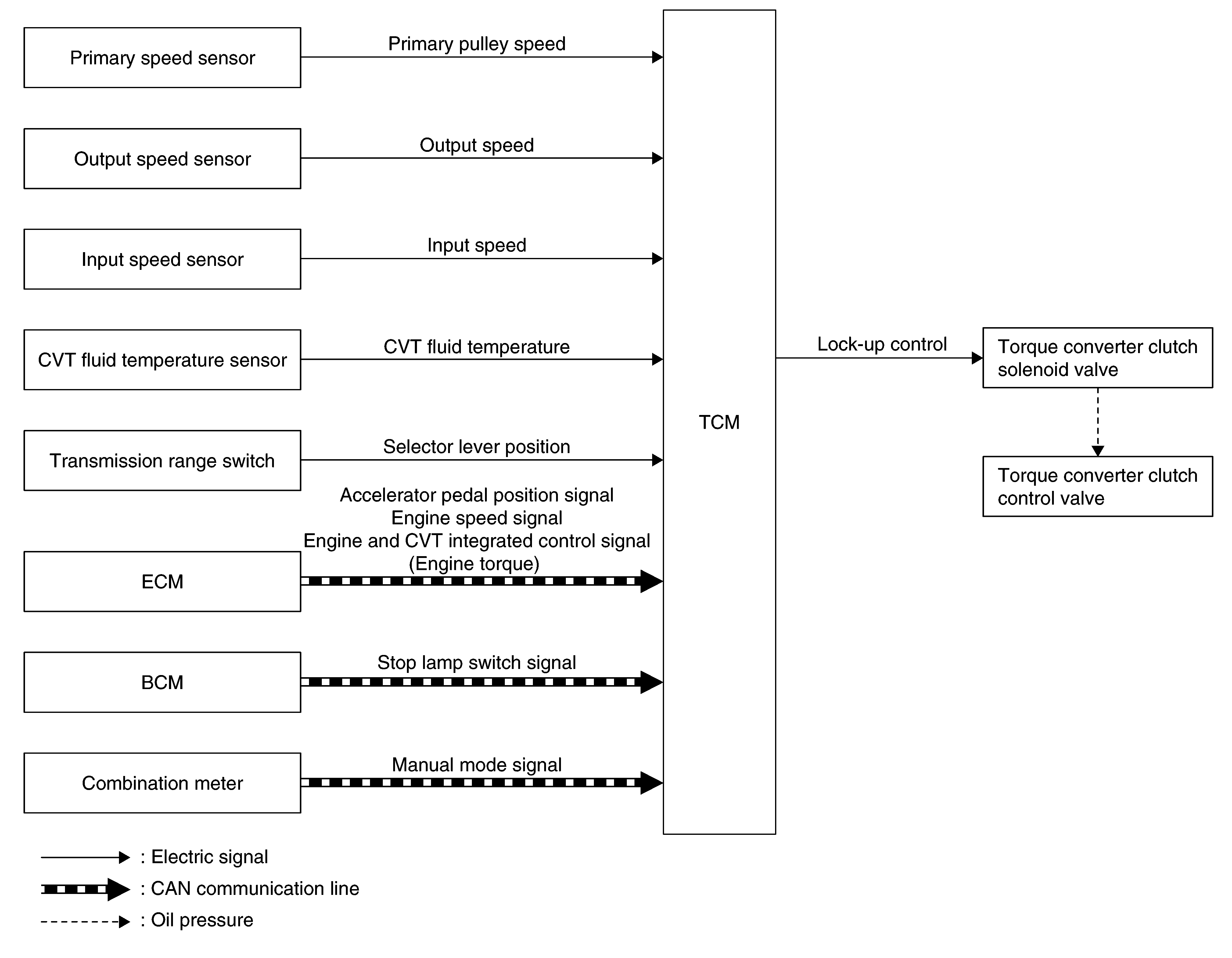

Home >> Infiniti >> 2020 >> QX60 Pure, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> System Description >> System >> Lock-Up Control >> System Description >> System Diagram
