Exploded View

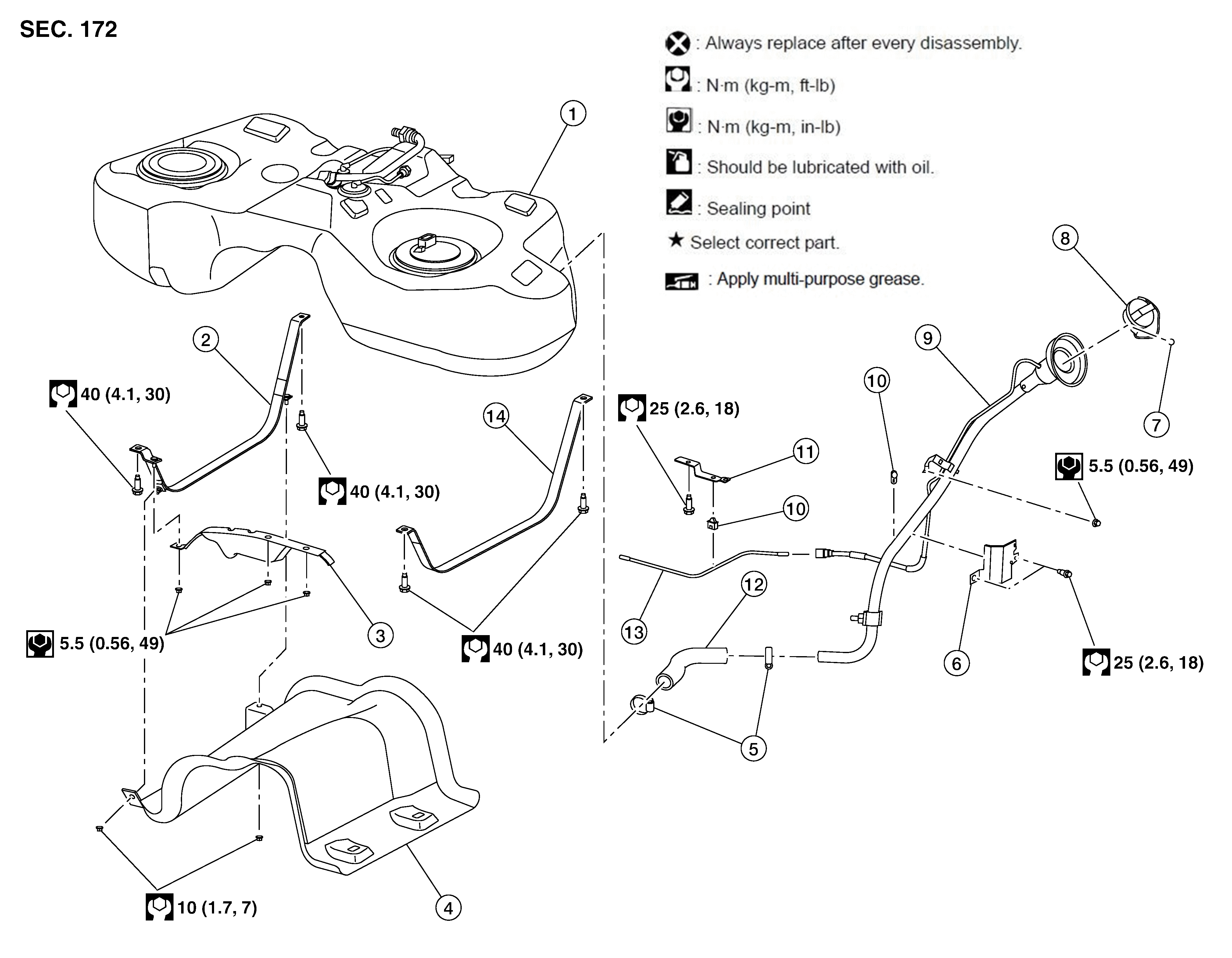

Fig 1: Fuel Tank Components With Torque Specifications

GNSALBIA0117Z-117

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Fuel tank	2.	Fuel tank strap (RH)	3.	Fuel tank protector upper
4.	Fuel tank protector	5.	Clamp	6.	Fuel filler hose cover
7.	Clip	8.	Fuel filler cap	9.	Fuel filler hose
10.	Clip	11.	Vent bracket	12.	Fuel filler hose lower
13.	Vent tube	14.	Fuel tank strap (LH)
