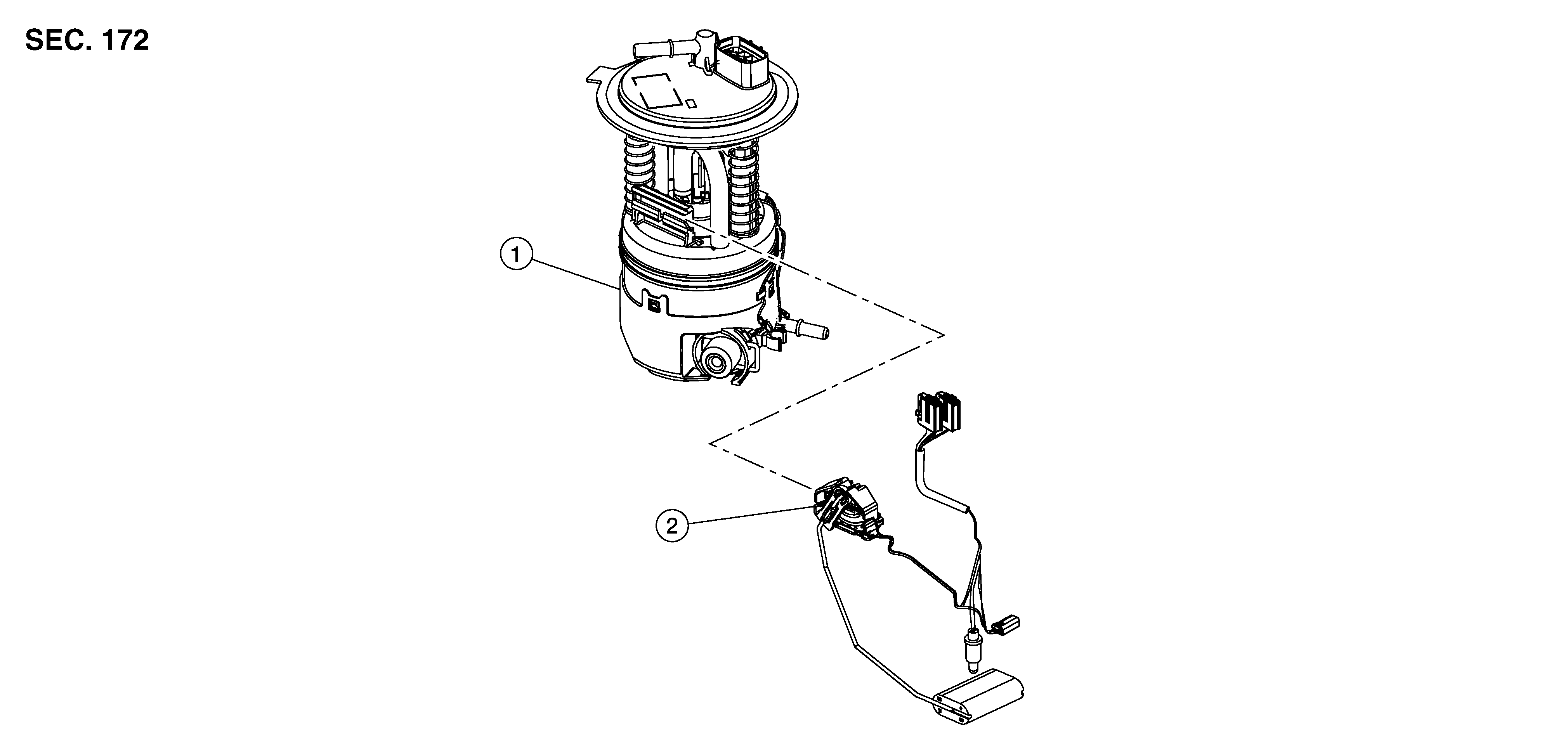

Exploded View

GNSALBIA0197Z-197Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel filter and fuel pump assembly

2.

Fuel level sensor
