Exploded View

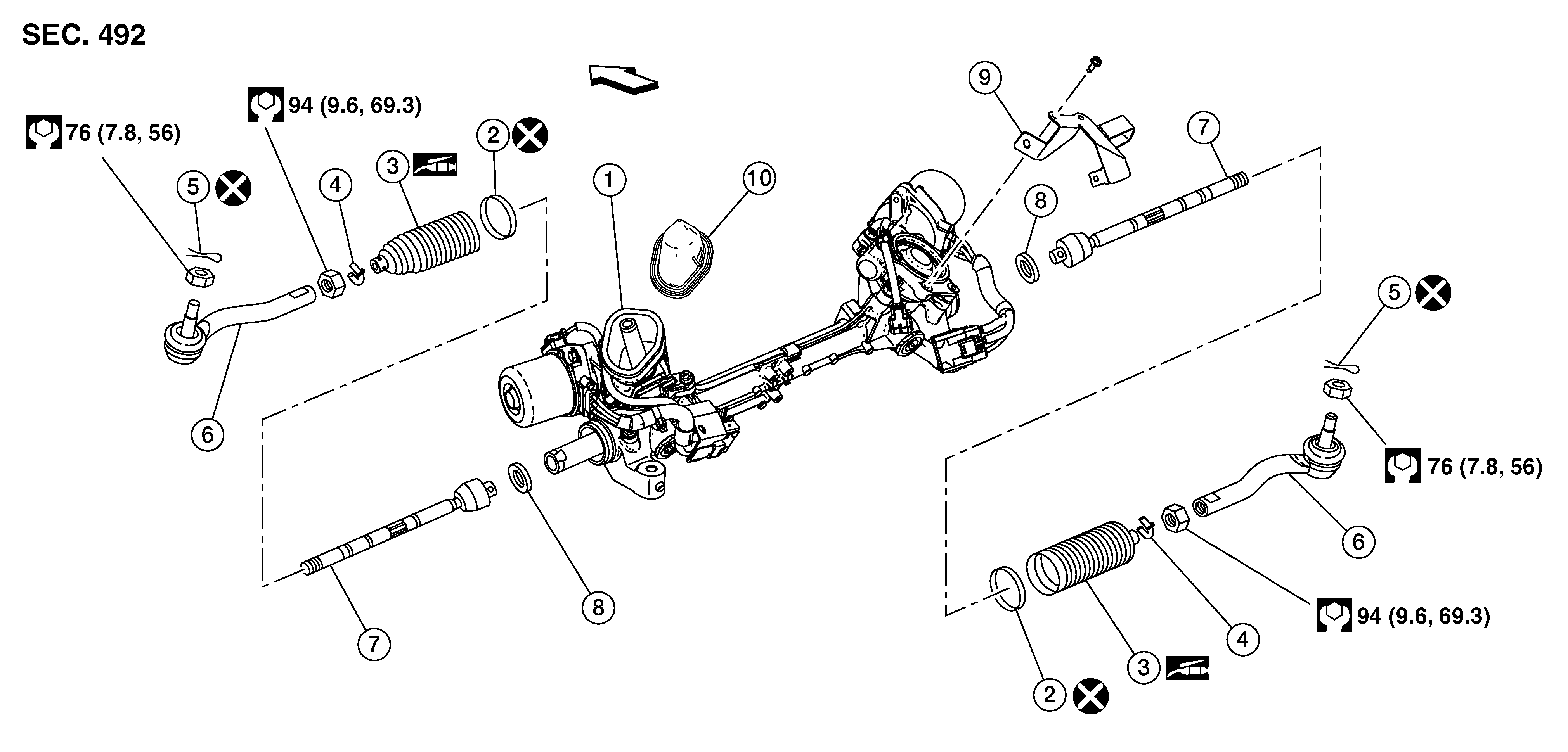

Fig 1: Steering Gear And Linkage With Torque Specifications
GNSDB120820Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering gear

2.

Large boot clamp

3.

Boot

4.

Small boot clamp

5.

Cotter pin

6.

Outer socket

7.

Inner socket

8.

Spacer

9.

Bracket

10.

Outer guide

SYMBOL

Front
