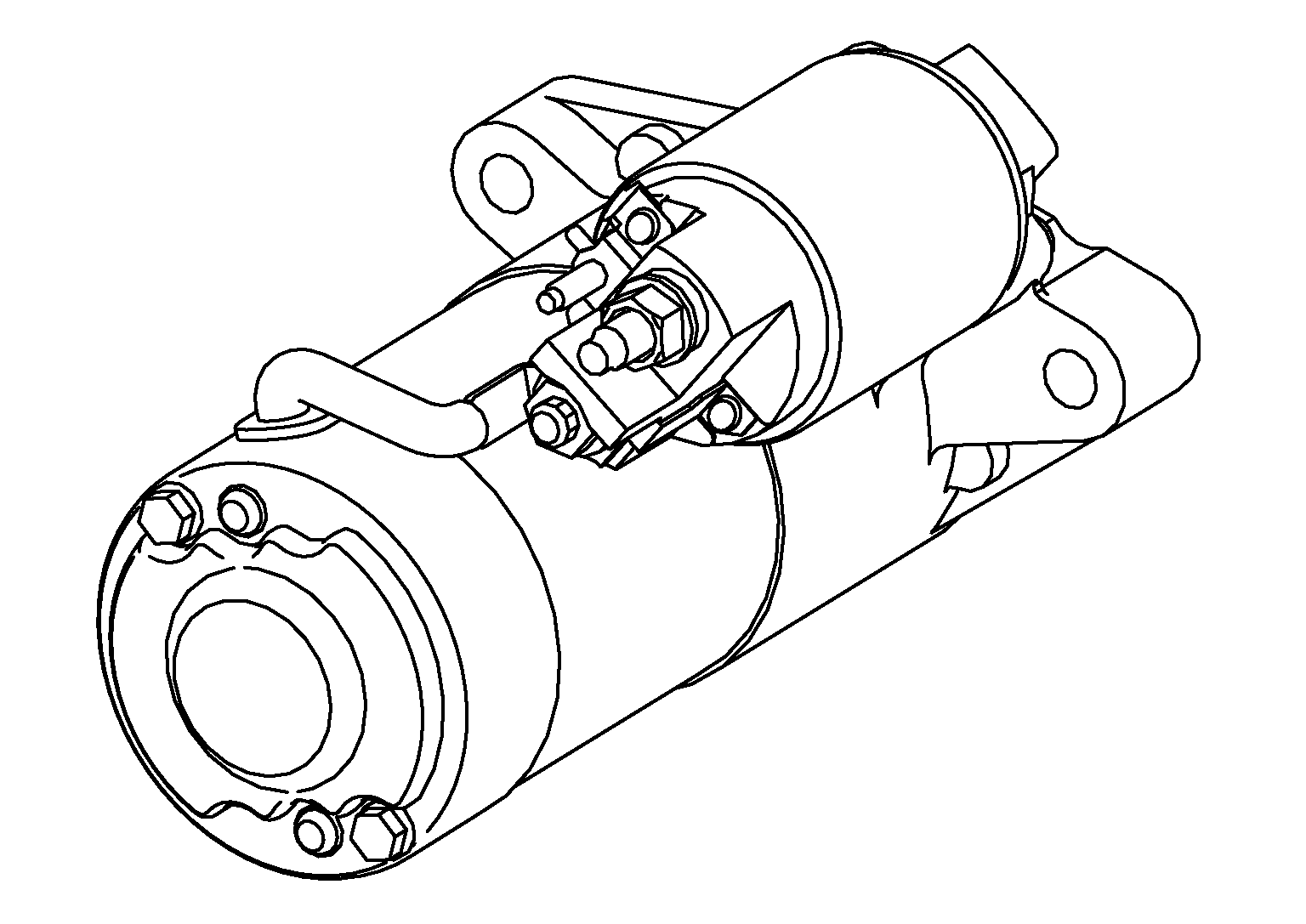

Component Description
- The starter motor plunger closes and the motor is supplied with battery power, which in turn cranks the engine, when the "S" terminal is supplied with electric power.
- Located toward the rear of the engine, just before the transmission.
- "B" terminal: The "B" terminal is constantly supplied with battery power.
- "S" terminal: The starter motor magnetic switch ("S" terminal) is supplied with power when the cranking condition is satisfied.
