Individual Operation

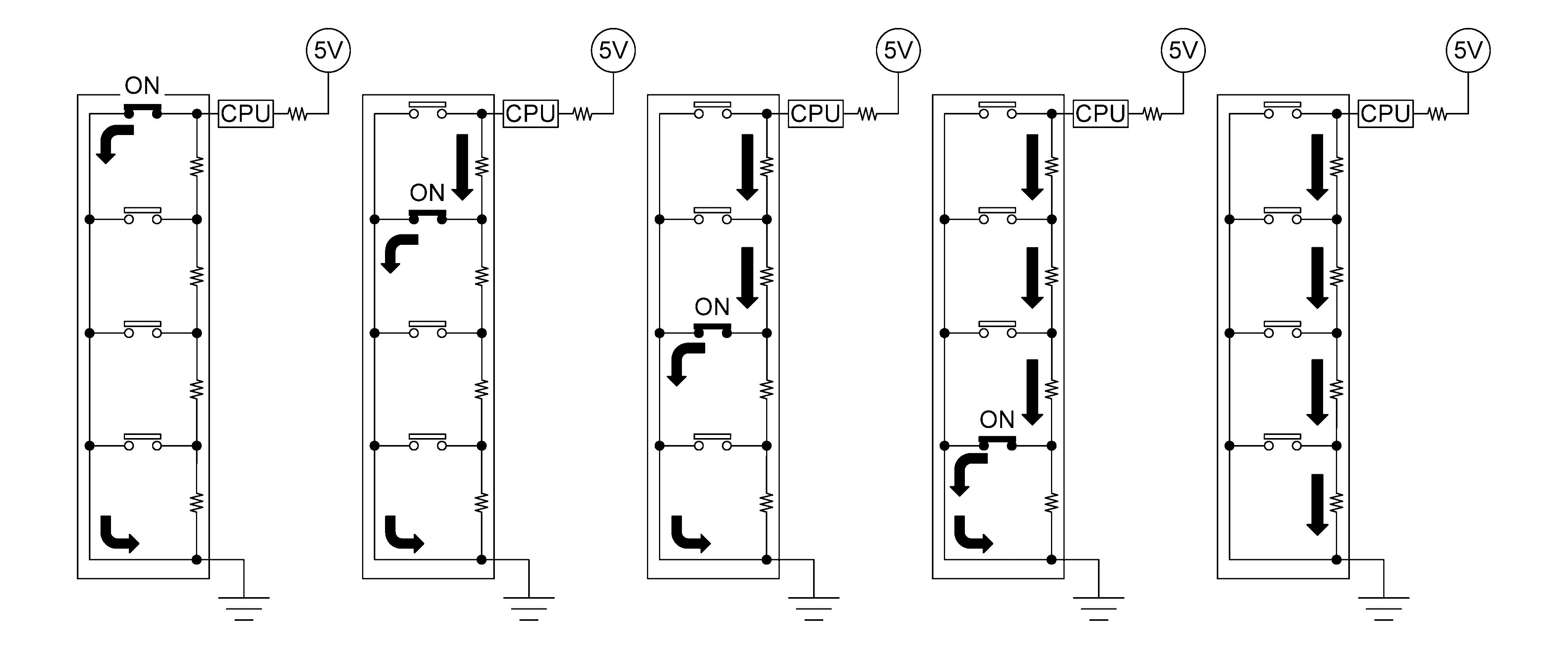

Each switch circuit has a resistor with a different resistance connected in series.

The ECM reads the voltage values that are transmitted from each switch and split by the resistors, and detects which button is operated. The ECM reads the voltage values that are transmitted from each switch and split by the resistors, and detects which button is operated.

GNSJSBIB0952GB-952Courtesy of NISSAN NORTH AMERICA, INC.
