Switches And Indicators

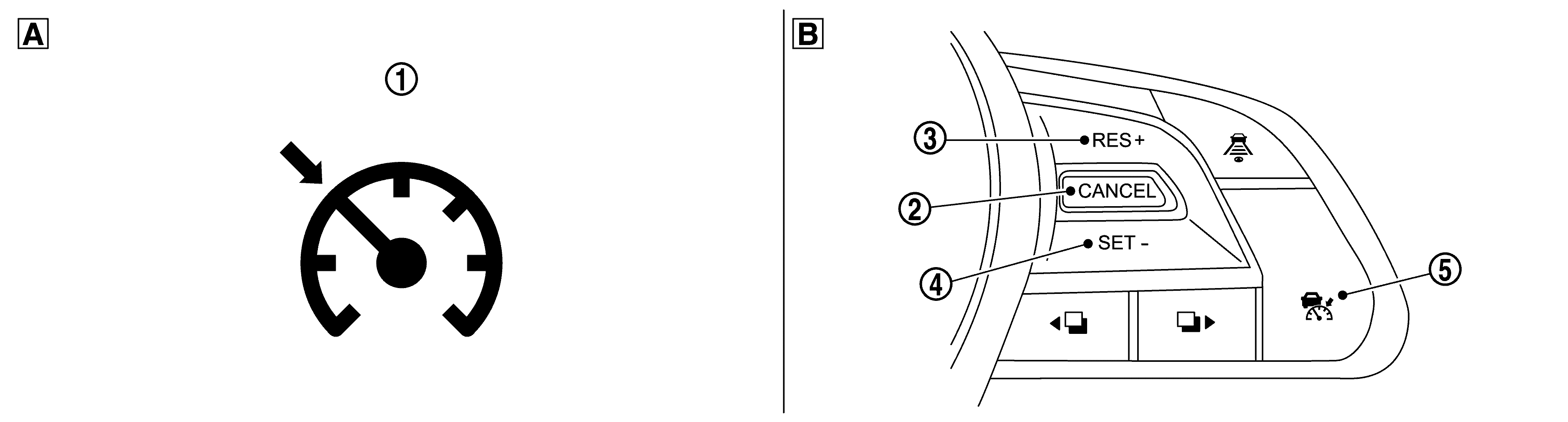

GNSILL0181022Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

On the combination meter

SYMBOL

On the steering wheel

SYMBOL

ASCD indicator

SYMBOL

CANCEL switch

SYMBOL

RES + switch

(RESUME/ACCELERATE)

SYMBOL

SET - switch

(SET/COAST)

SYMBOL

Speed limiter MAIN switch

SYMBOL

ASCD MAIN switch
