Exploded View

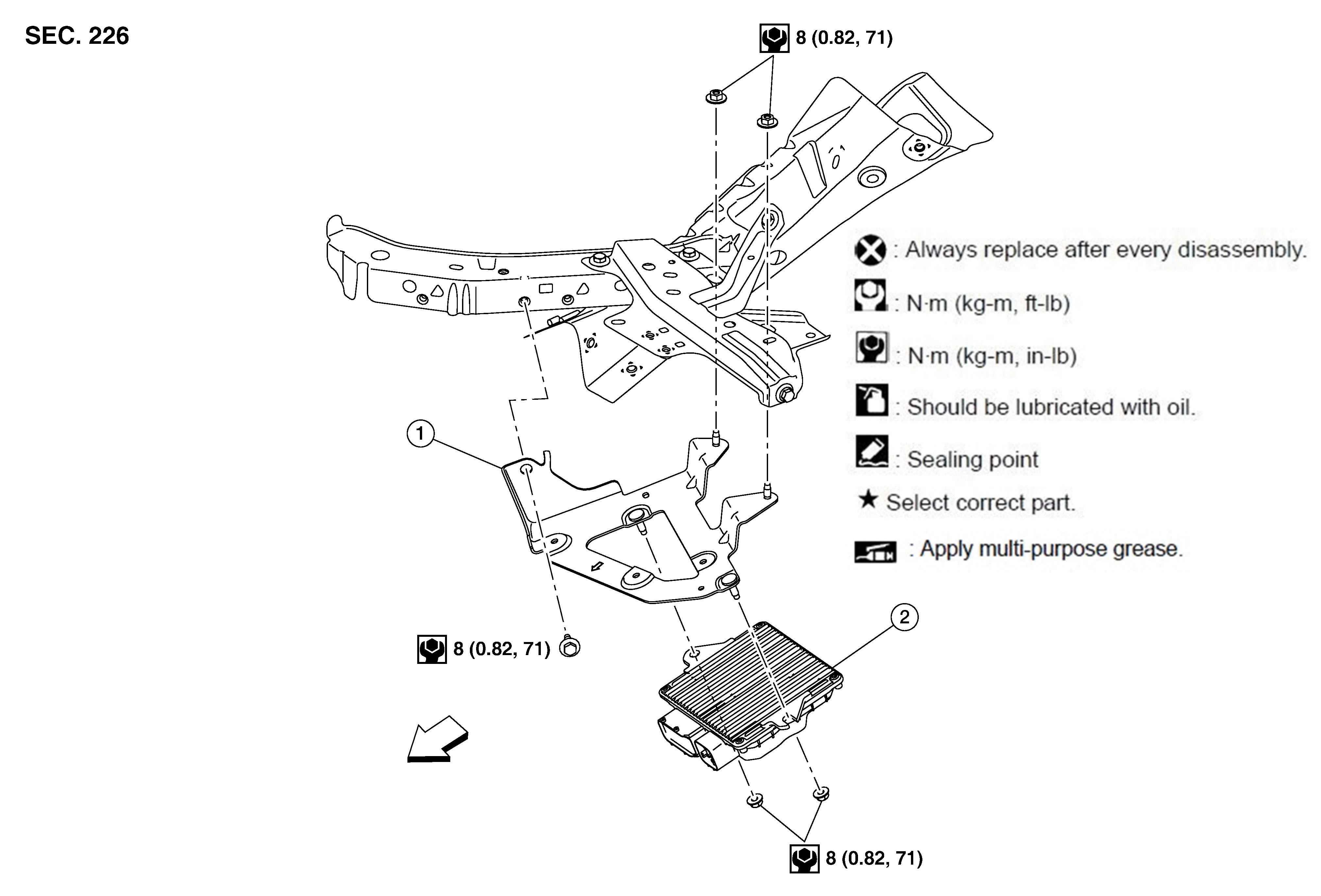

Fig 1: Electric Intake Valve Timing Control Module With Torque Specifications
GNSDB19612Courtesy of NISSAN NORTH AMERICA, INC.

1.

Electric intake valve timing control module bracket

2.

Electric intake valve timing control module

SYMBOL

Front
