Exploded View

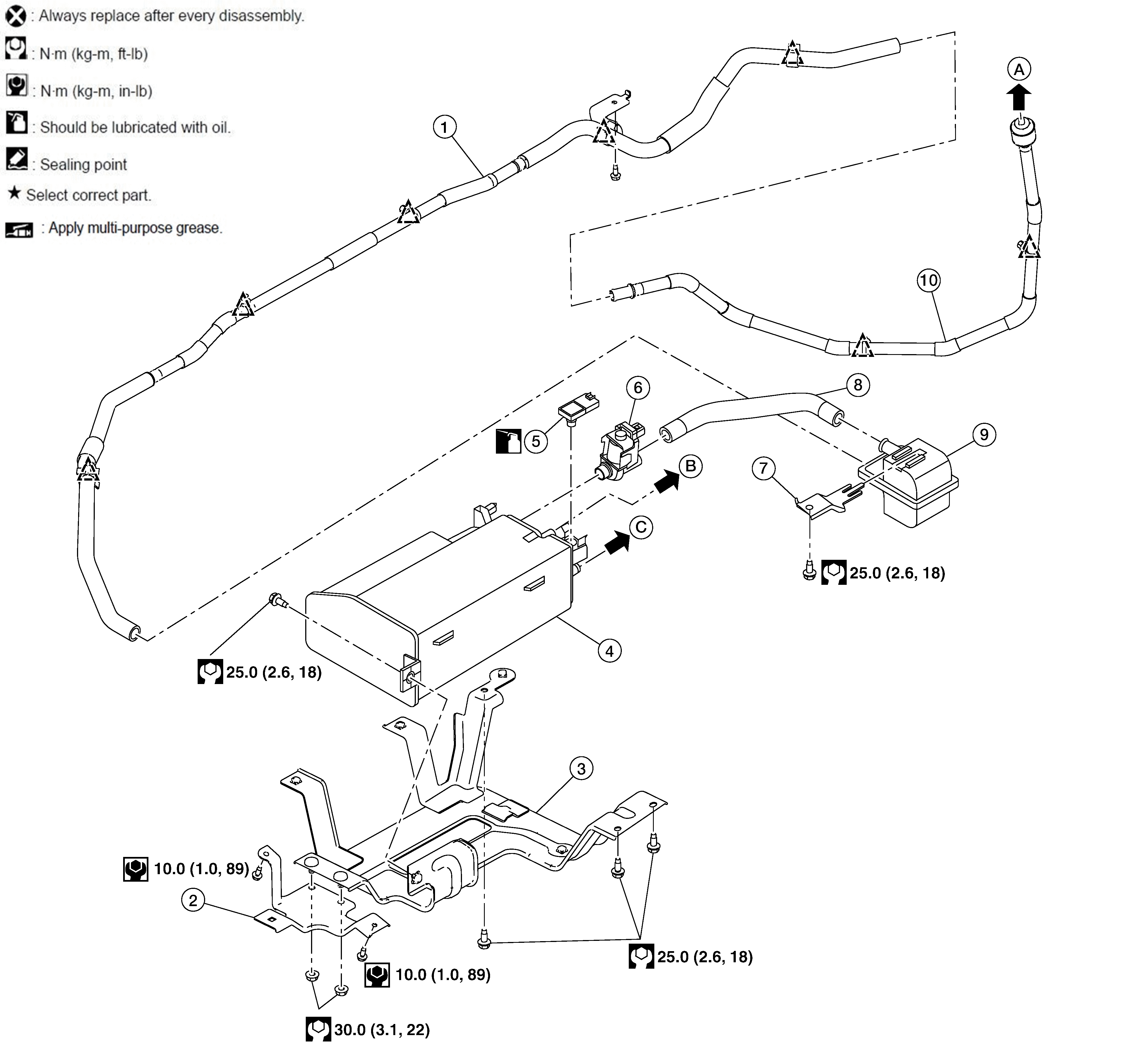

Fig 1: EVAP Control System Pressure Sensor With Torque Specifications

Courtesy of NISSAN

1.	EVAP canister filter hose	2.	EVAP canister bracket A	3.	EVAP canister bracket B
4.	EVAP canister	5.	EVAP control system pressure sensor	6.	EVAP canister vent control valve
7.	EVAP canister vent control valve bracket	8.	EVAP canister vent control valve hose	9.	EVAP canister filter
10.	EVAP canister filter hose	A.	To fuel filler tube. Refer to Exploded View .	B.	To EVAP vent tube. Refer to Exploded View .
C.	To EVAP vacuum delay valve. Refer to Exploded View .		Clip
