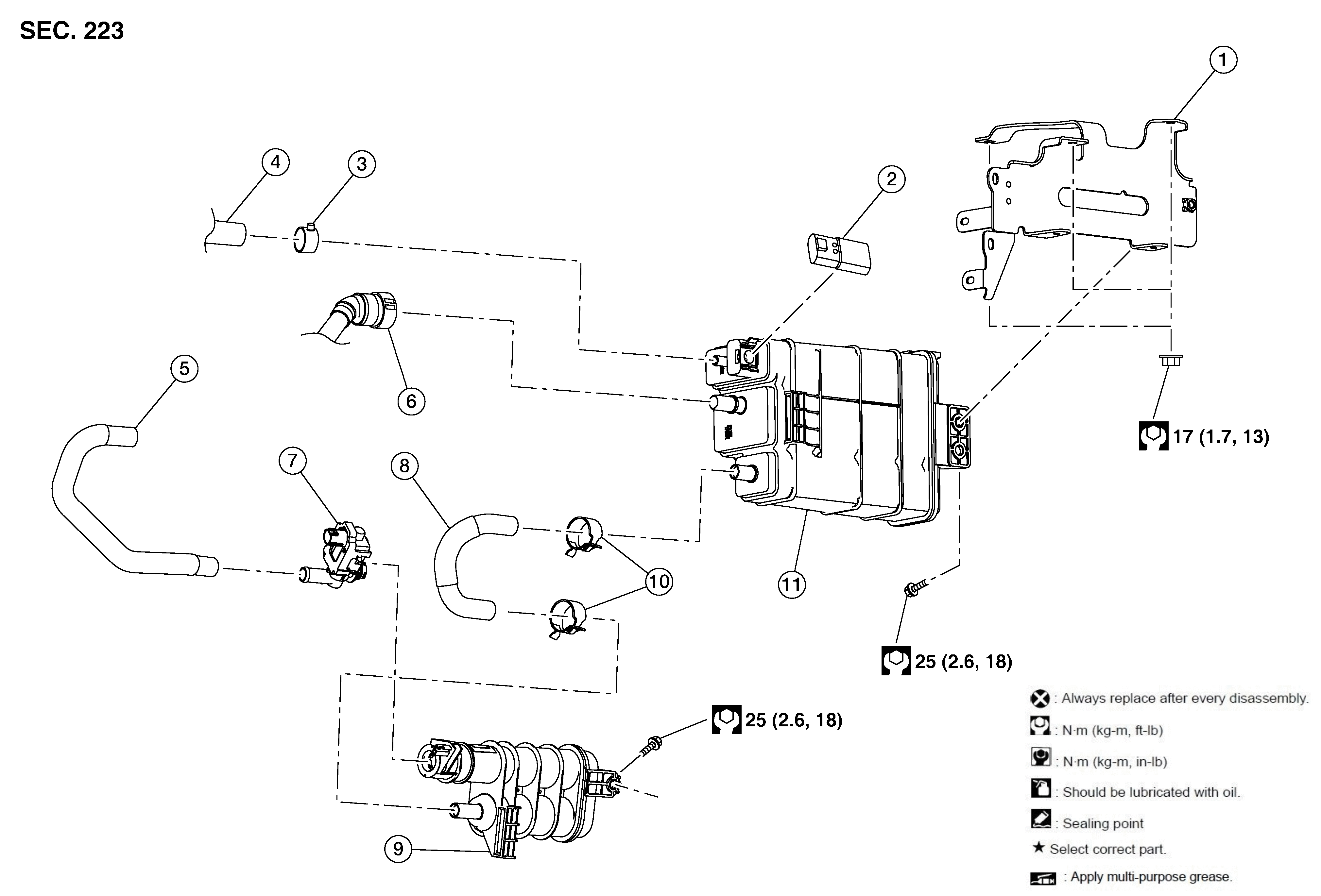

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EVAP canister bracket	2.	EVAP control system pressure sensor (with O-ring)	3.	Clamp
4.	EVAP canister purge hose	5.	EVAP tube	6.	EVAP vent line
7.	EVAP canister vent control valve	8.	EVAP canister vent control valve hose	9.	Secondary EVAP canister
10.	Clamp	11.	EVAP canister
