Exploded View

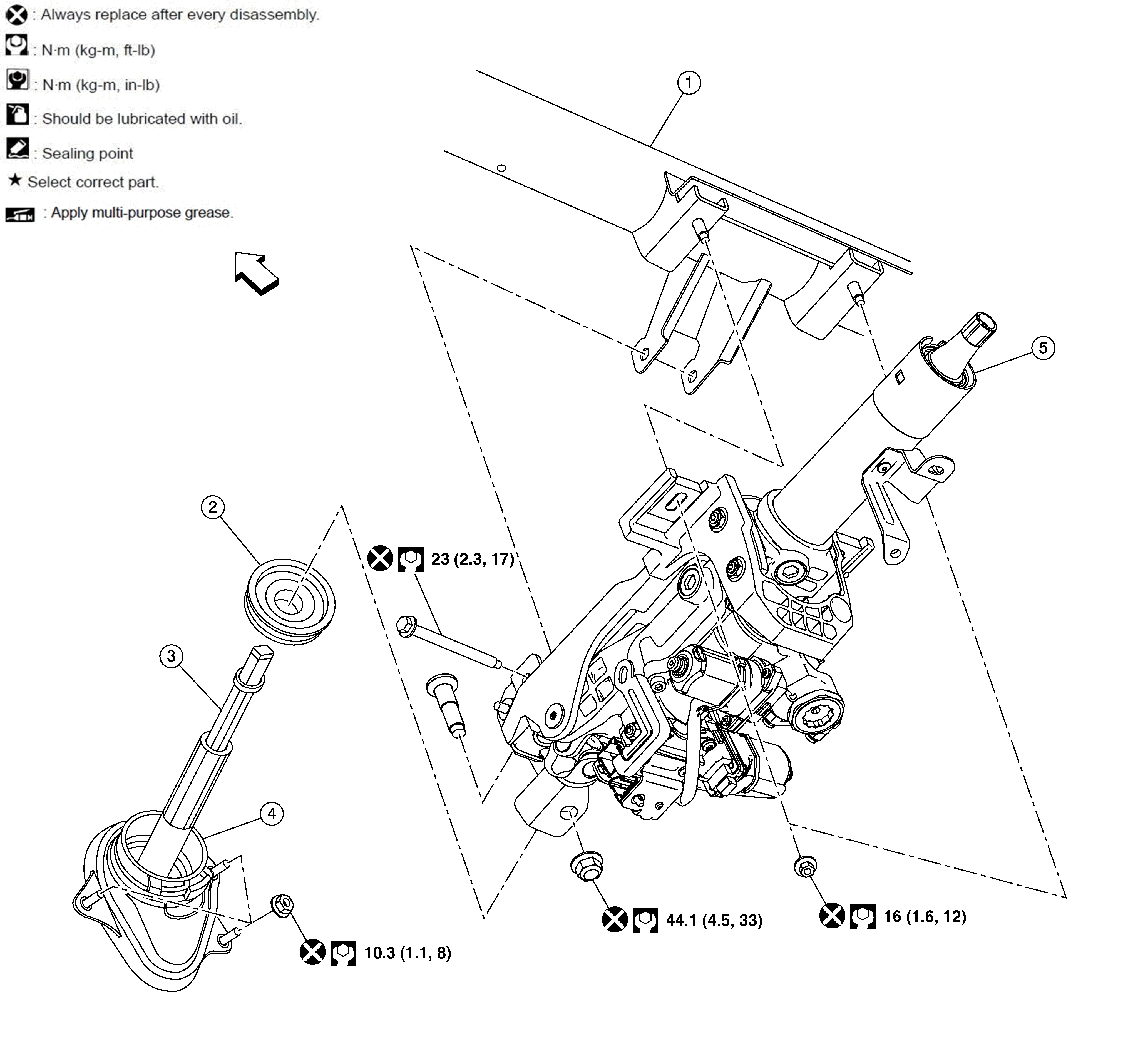

Fig 1: Steering Column With Torque Specifications
GNSDB140204Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: SYMBOL Electric steering column shown. Manual steering column similar.
1. Steering member 2. Hole cover seal 3. Lower joint
4. Hole cover 5. Steering column A. Refer to Installation .
B. Refer to Installation . SYMBOL Front
