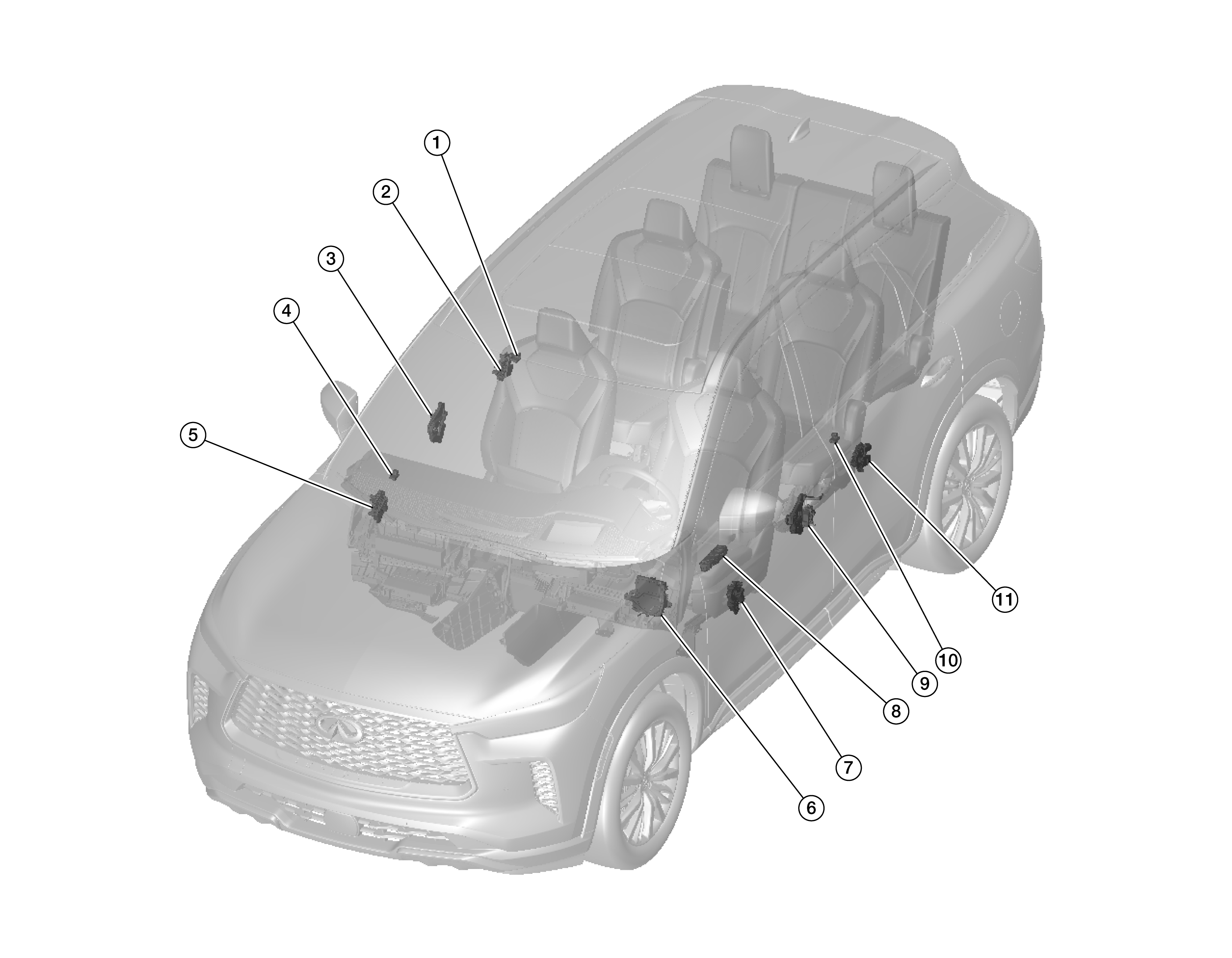

| 1. |
Rear power window switch RH |
Refer to Rear Power Window Switch . |
| 2. |
Rear power window motor RH |
Refer to Rear Power Window Motor . |
| 3. |
Front door lock assembly RH (door switch) |
Detects door open/close condition and transmits the signal to the BCM. Refer to Component Location
for detailed component location. |
| 4. |
Front power window switch RH |
Refer to Front Power Window Switch RH . |
| 5. |
Front power window motor RH |
Refer to Front Power Window Motor RH . |
| 6. |
BCM (Body Control Module) |
- Supplies power supply to the power window switch.
- Controls retained power.
Refer to Component Part Location
for detailed component location. |
| 7. |
Front power window motor LH |
Refer to Front Power Window Motor LH . |
| 8. |
Main power window and door mirror switch |
Refer to Main Power Window and Door Mirror Switch . |
| 9. |
Front door lock assembly LH (door switch) |
Detects door open/close condition and transmits the signal to the BCM. Refer to Component Location
for detailed component location. |
| 10. |
Rear power window switch LH |
Refer to Rear Power Window Switch . |
| 11. |
Rear power window motor LH |
Refer to Rear Power Window Motor . |
