Repair and Diagnosis: Electrical: Starter: Overhaul: Reassembly

To reassemble, reverse disassembly procedure. Fill gear case on reduction gear models with grease. Lightly oil pinion and all bearing surfaces.

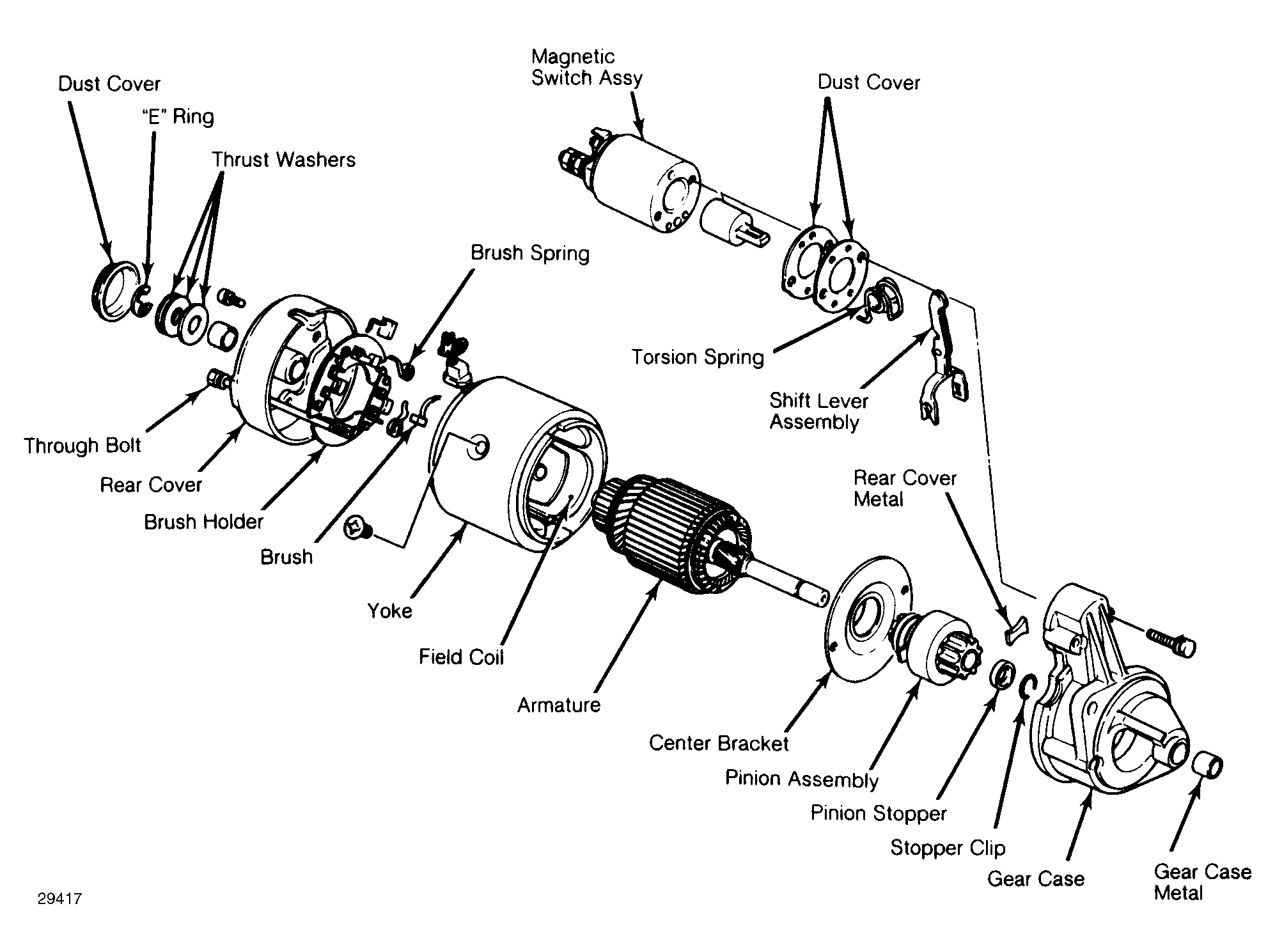

Fig 1: Disassembled View of a Typical Hitachi Conventional Starter

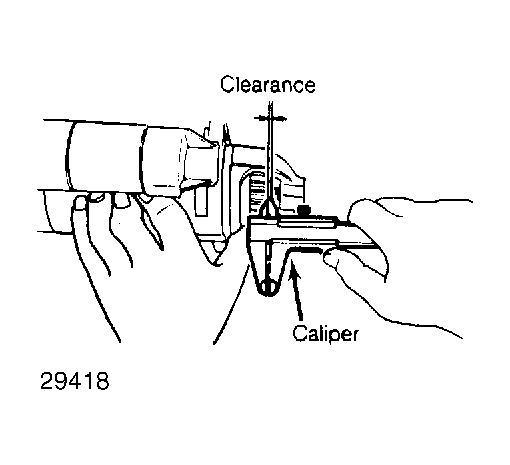

Fig 2: Measuring Pinion Edge-to-Pinion Stopper Clearance

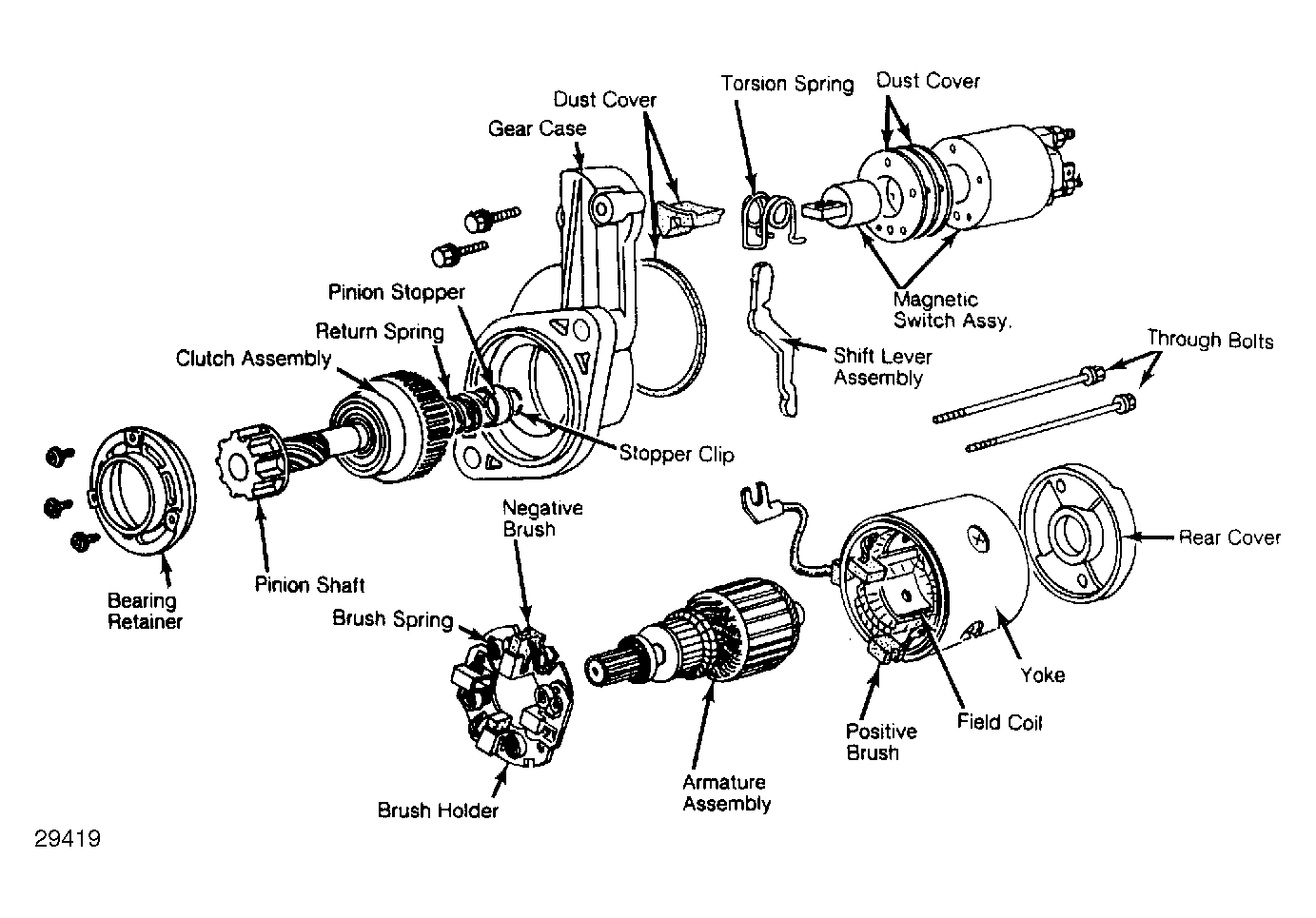

Fig 3: Disassembled View of Typical Hitachi Reduction Gear Starter For Isuzu I-Mark With Diesel Engine
