Return Test

  1. Apply 12 volts between "M" (MT) terminal and the solenoid case. Pull pinion out and release it (push plunger into solenoid body by hand). See Fig 1.

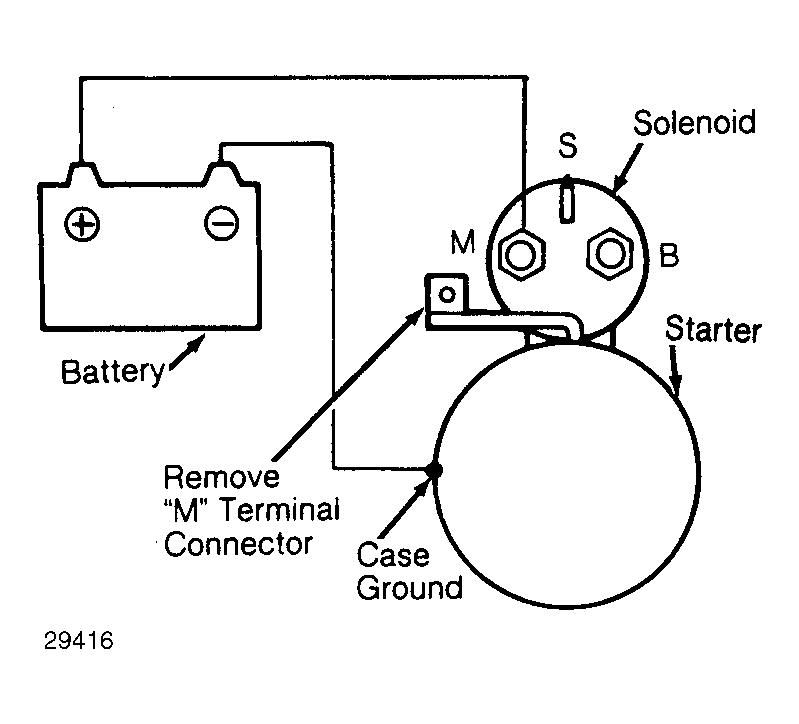

    Fig 1: Connections for Conducting Return Test Connect battery to "M" terminal and solenoid case.
    G29416
  2. If the case is short-circuited, the pinion will remain out (plunger will be attracted). If nothing happens, solenoid is good.
