Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistors | Under heater blower case cover. |
| Diode Box | Mounted to right inner fender panel (possible removal of fender required for access), taped and wrapped in heavy insulation. |

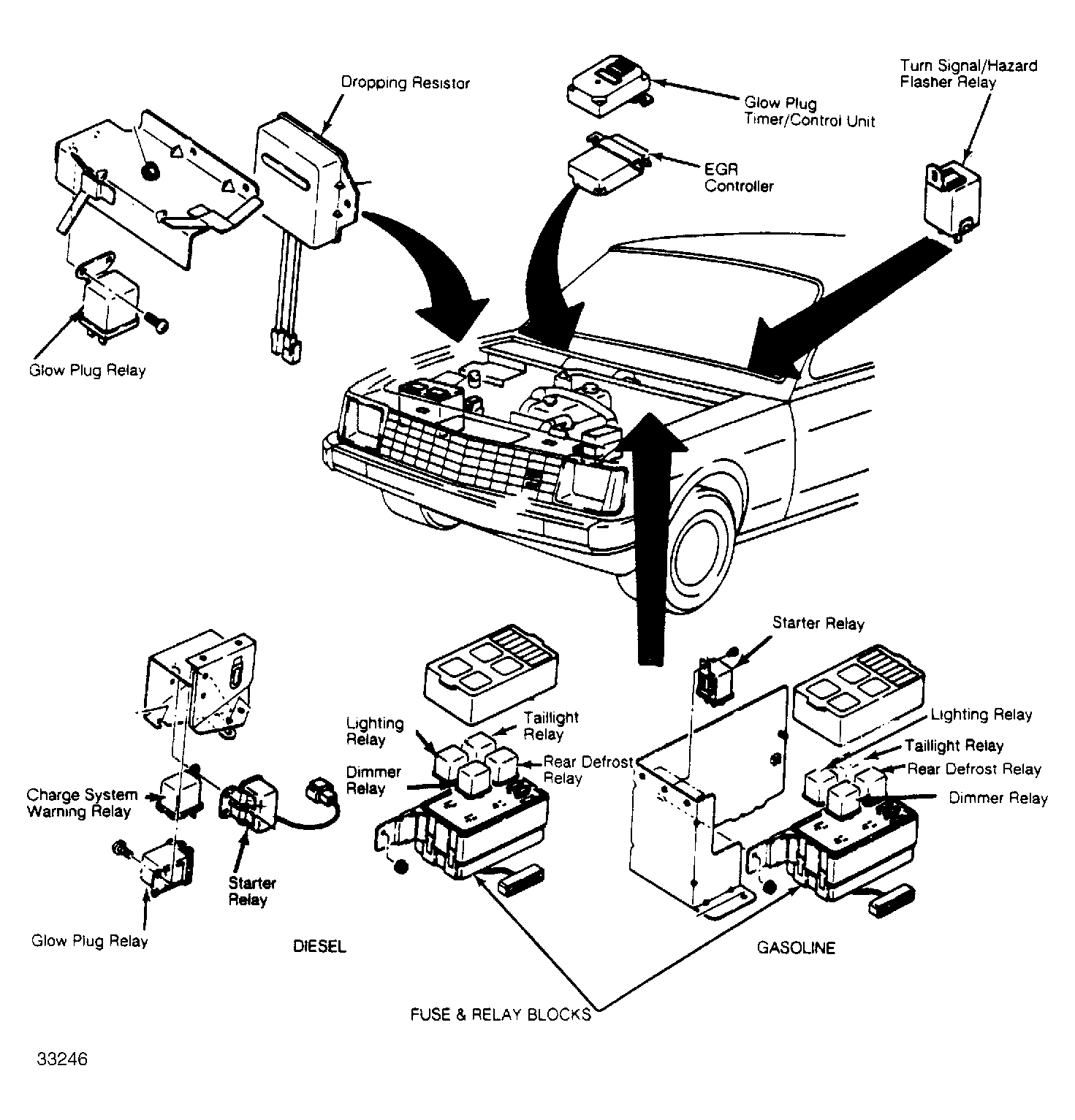

| Dropping Resistor (Diesel) | On right side of firewall. See Figure . |
| EFE Heater | In carburetor base gasket. |

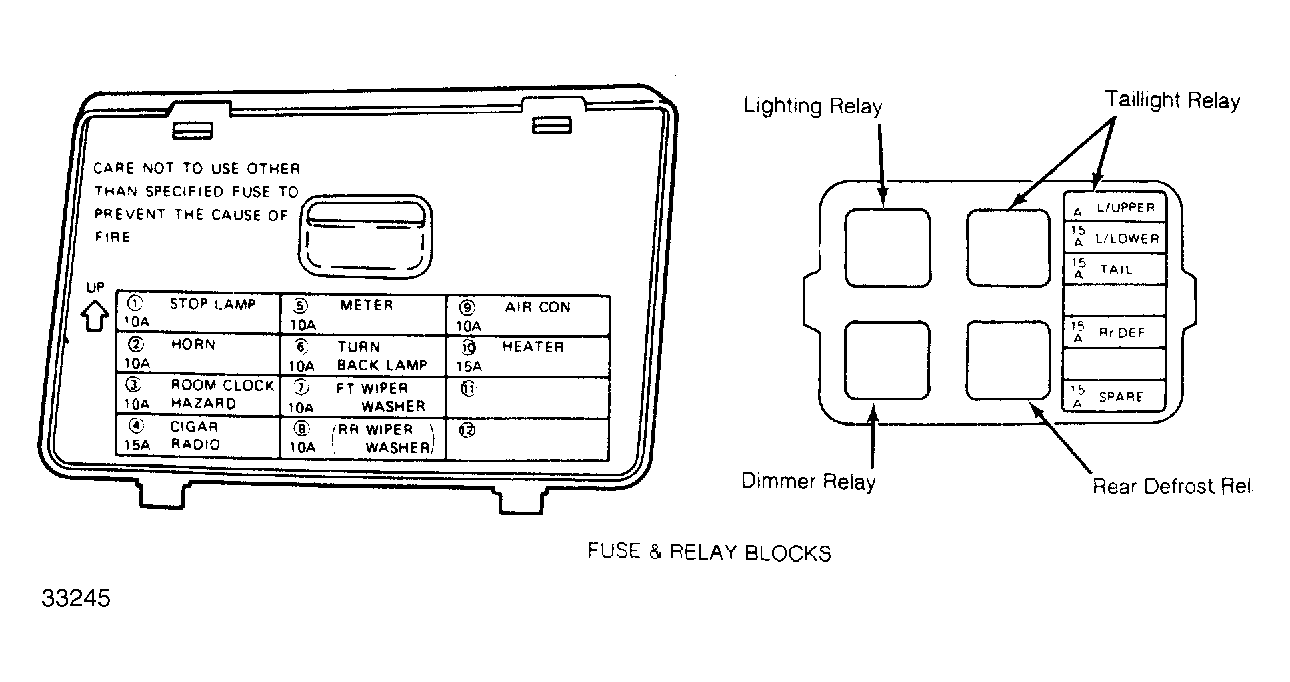

| Fuse & Relay Blocks | Under left side of dash and in engine compartment. See Figure & Figure . |
