Home >> Isuzu >> 1985 >> I-Mark 2D Hatchback, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Testing >> Electronic Control Module (ECM) Check, Chart 2

Electronic Control Module (ECM) Check, Chart 2

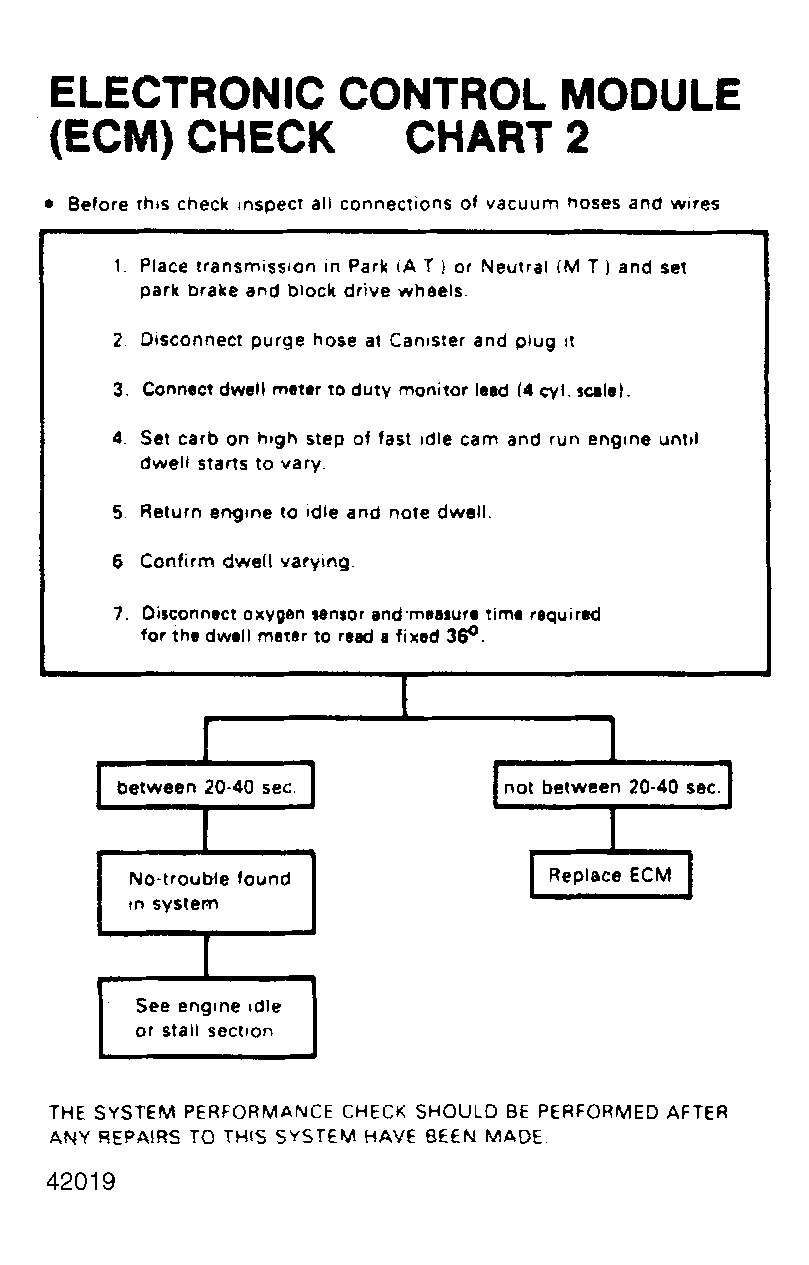

Fig 1: Electronic Control Module (ECM) Check, Chart 2

G42019
