Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistor | On heater box. |
| Cruise Control Servo | At left front corner of engine compartment. |
| Diagnostic Connector | Under left side of instrument panel near MCU. |
| Door Ajar Buzzer | Behind right side of dash. |
| Fuse Block | Under left side of instrument panel. |

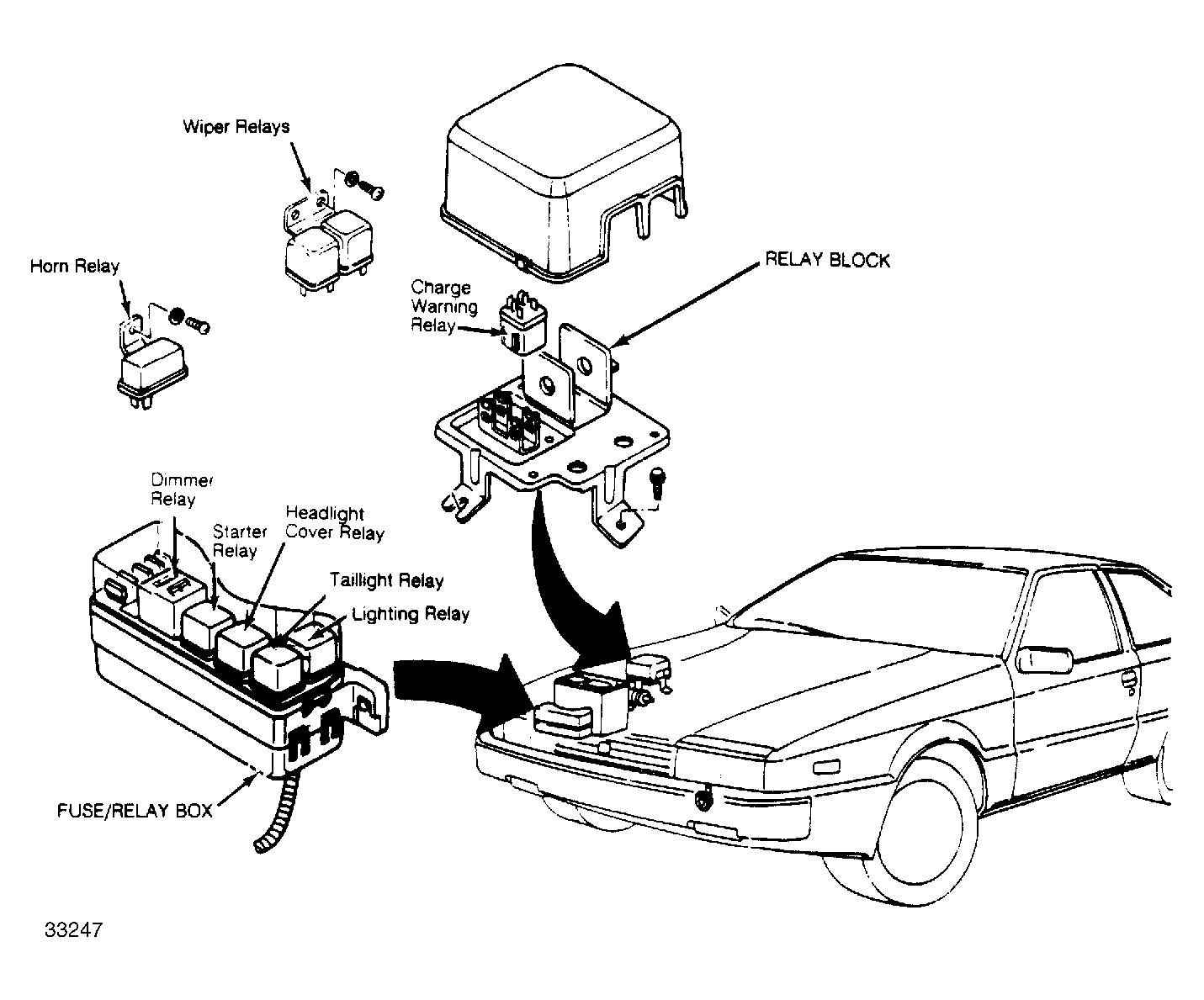

| Fuse/Relay Box | In front of battery. See Figure . |
| Multi-Display Unit | In center of instrument panel console. |
| Relay Block | On right inner fender panel. See Figure . |
| Seat Belt Buzzer | Behind center of dash. |
