Home >> Isuzu >> 1985 >> Pickup Base, 2.2 S, 4WD >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Testing >> Code 31, Chart 14 - No Reference Signal

Code 31, Chart 14 - No Reference Signal

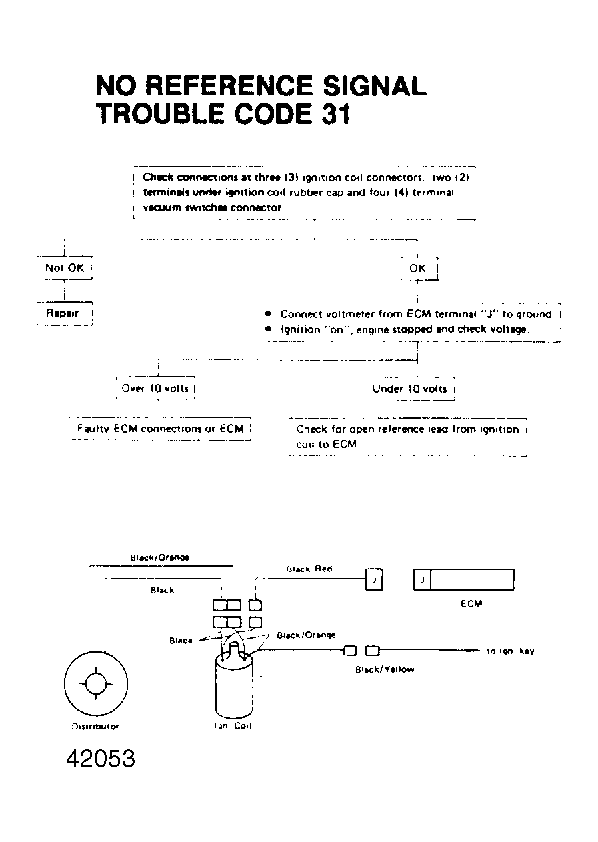

Fig 1: CODE 31, Chart 14 - No Reference Signal

G42053
