Home >> Isuzu >> 1985 >> Trooper II 2.2 S, MSG5L >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor System >> Testing >> Code 14, Chart 9 - Shorted Coolant Sensor CKT

Code 14, Chart 9 - Shorted Coolant Sensor CKT

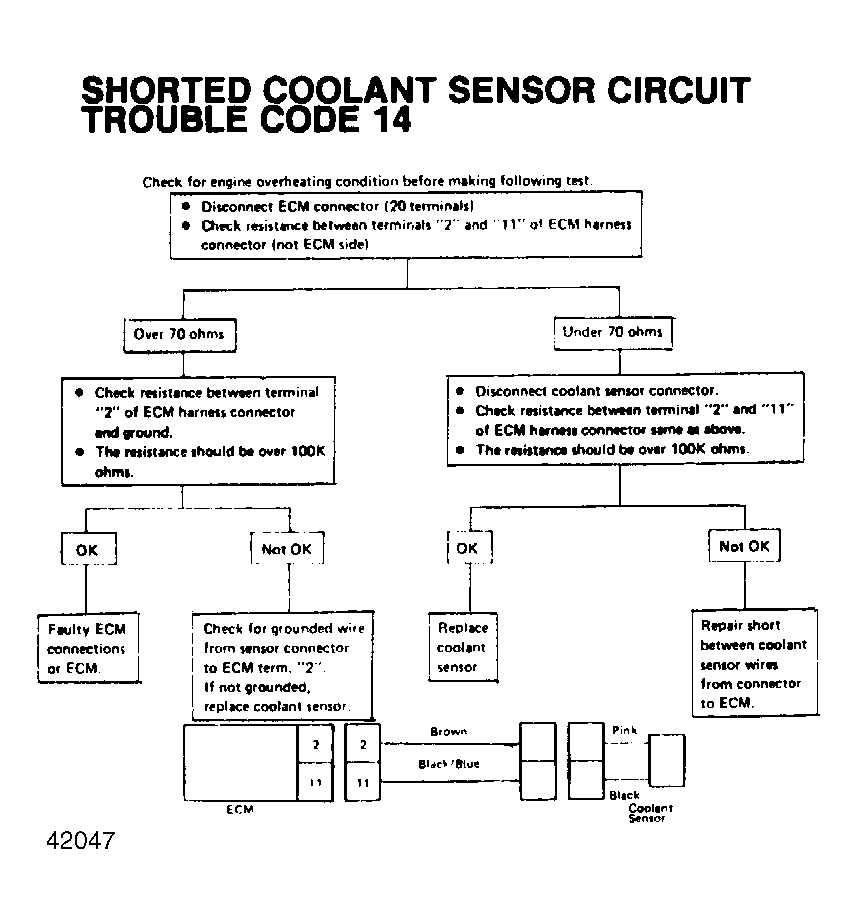

Fig 1: CODE 14, Chart 9 - Shorted Coolant Sensor Circuit

G42047
