PCV System: Description

Isuzu uses a closed type system which is designed to draw blow-by gases into the combustion chambers for reburning. Gasoline models use a baffle plate in the valve cover, regulating orifice, and connecting hoses to air cleaner and intake manifold.

Diesel models use a PCV valve assembly (containing PCV valve and oil separator), oil drain hose, and check valve.

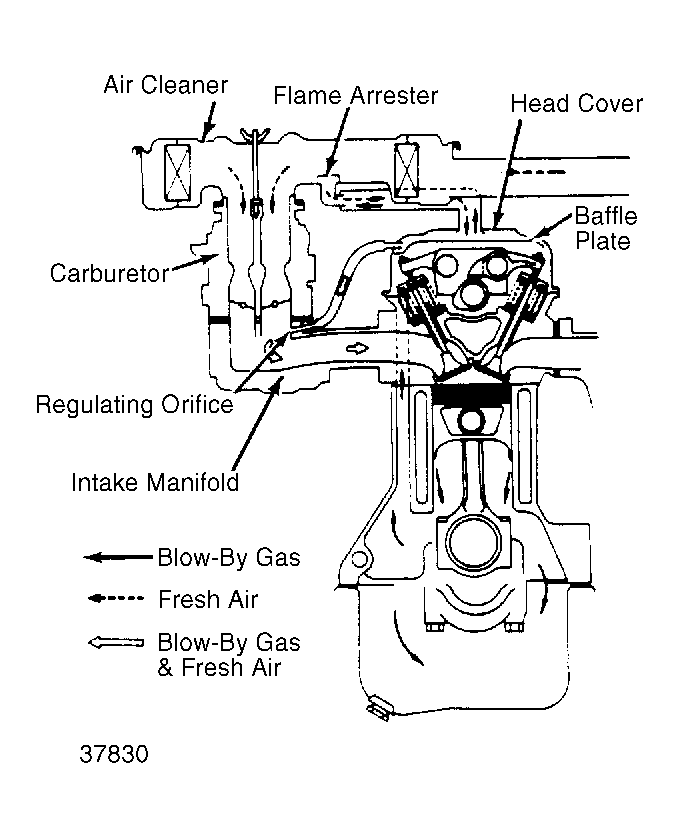

Fig 1: Crankcase Ventilation System (Except Impulse & P'UP Diesel) Gasoline engine system is shown.
