EGR Valve

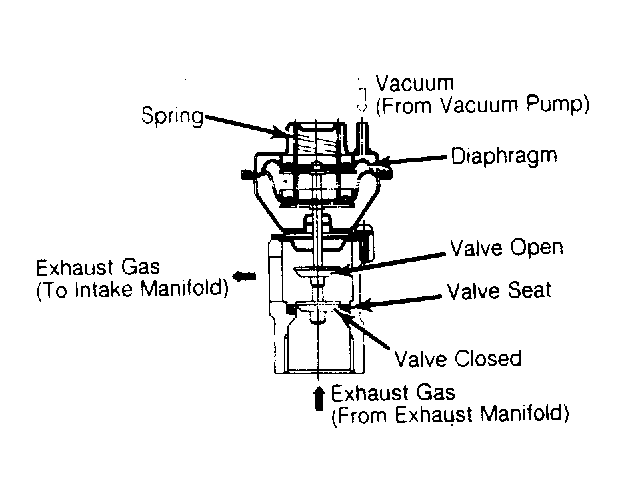

Using vacuum pump, check vacuum diaphragm operation. Diaphragm should not "leak down" and should move to full up position at about 11.8-15.8 in. Hg. See Figure .
