Intake Throttle Valve

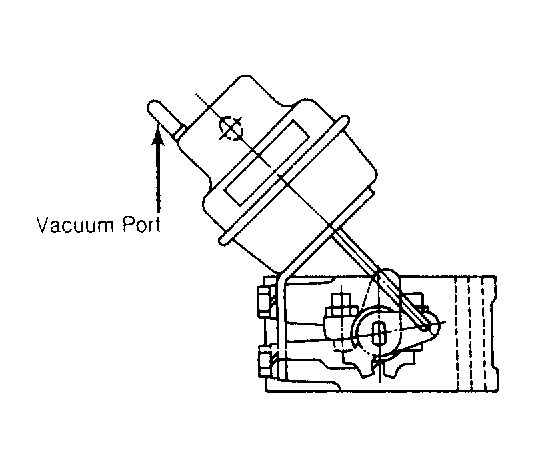

Apply vacuum to vacuum supply tube at top of vacuum diaphragm. Diaphragm should not "leak down" and should move to full turn position at 7.9 in. Hg. See Figure .
