Dropping Resistor

Check for continuity across terminals of resistor. If there is no continuity, replace resistor. Resistor is located on right front fender near battery.

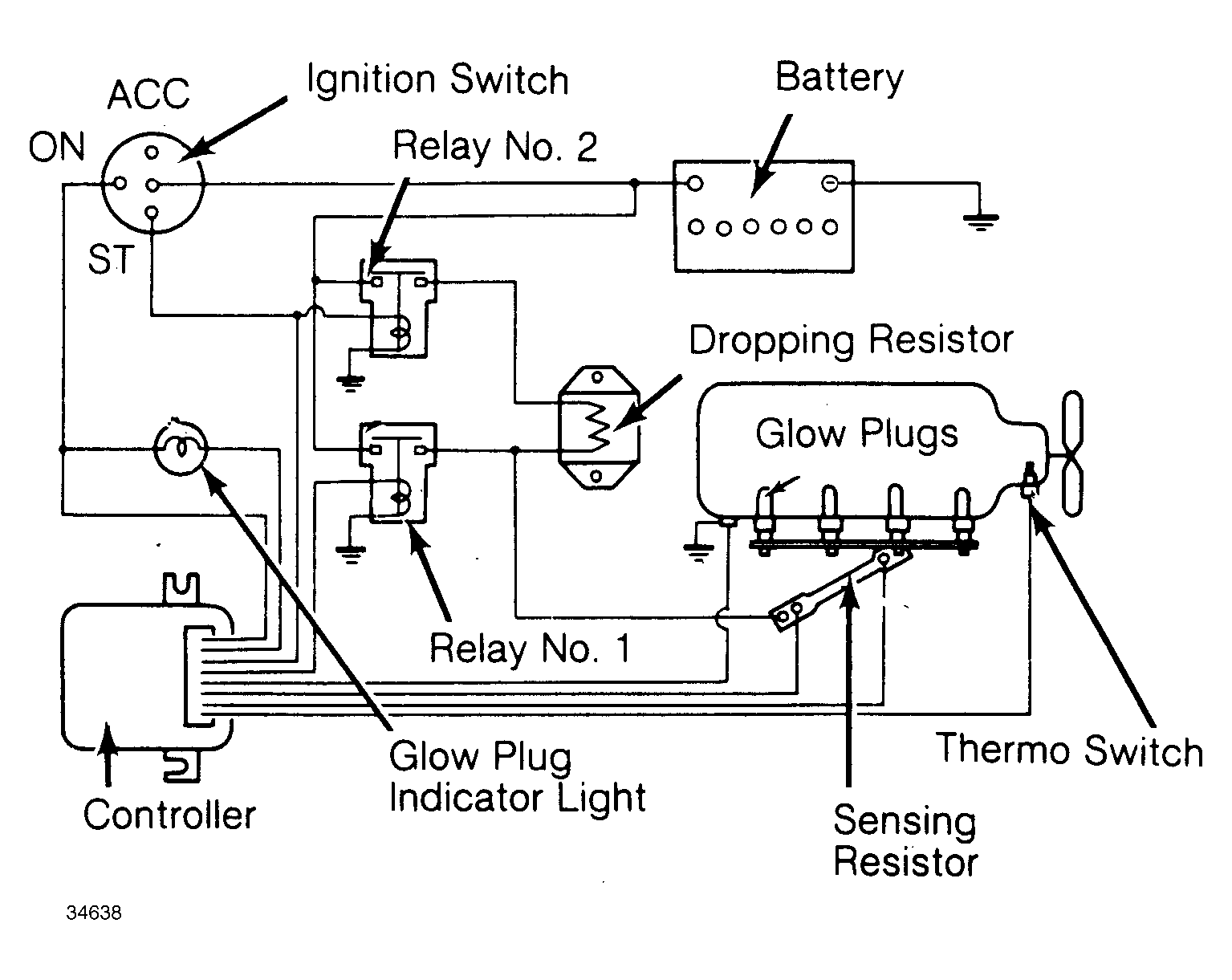

Fig 1: Glow Plug System Wiring Diagram
G34638Courtesy of ISUZU MOTOR CO.
