Control Units

CONTROL UNITS LOCATION

Component Location
Cruise Control Module (Trooper) Right side of glove box.
Electronic Control Module (ECM)

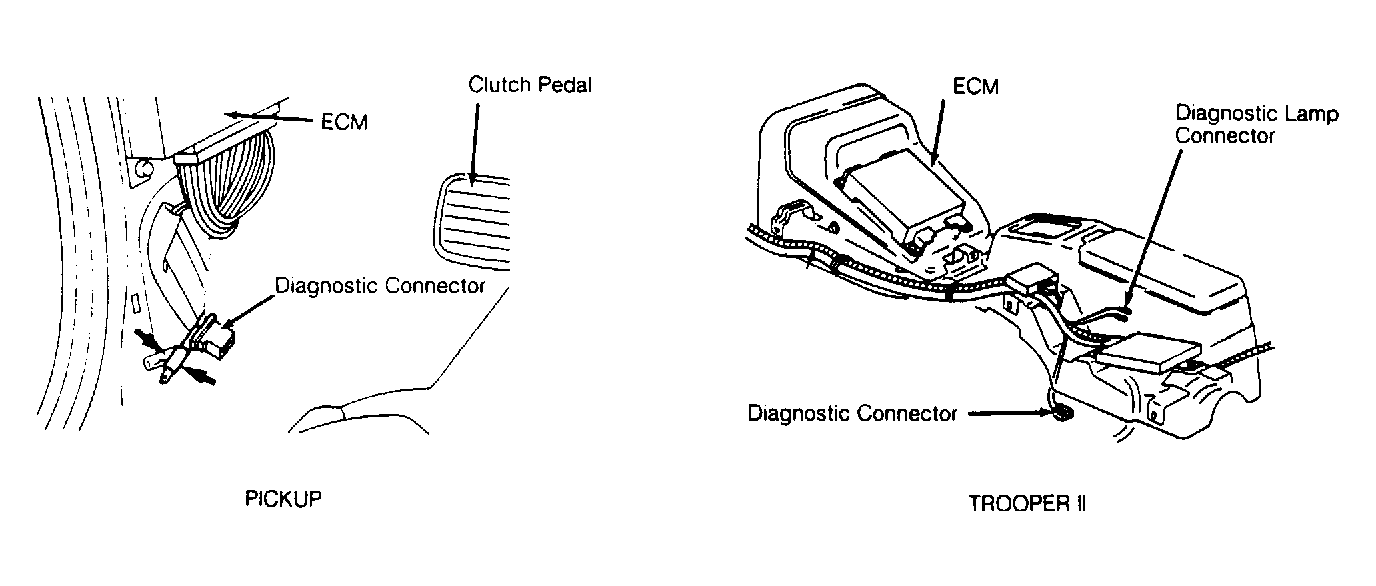

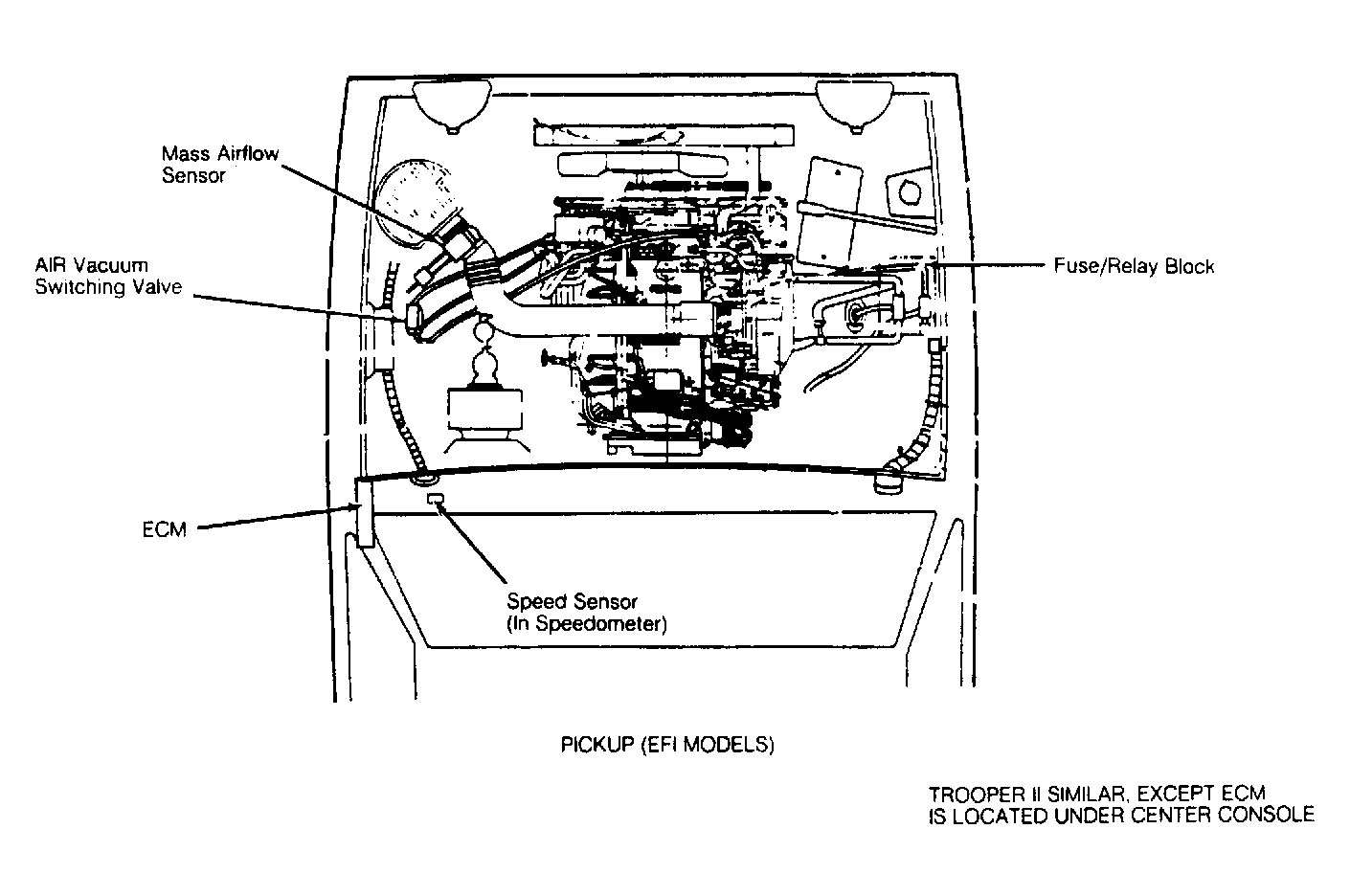

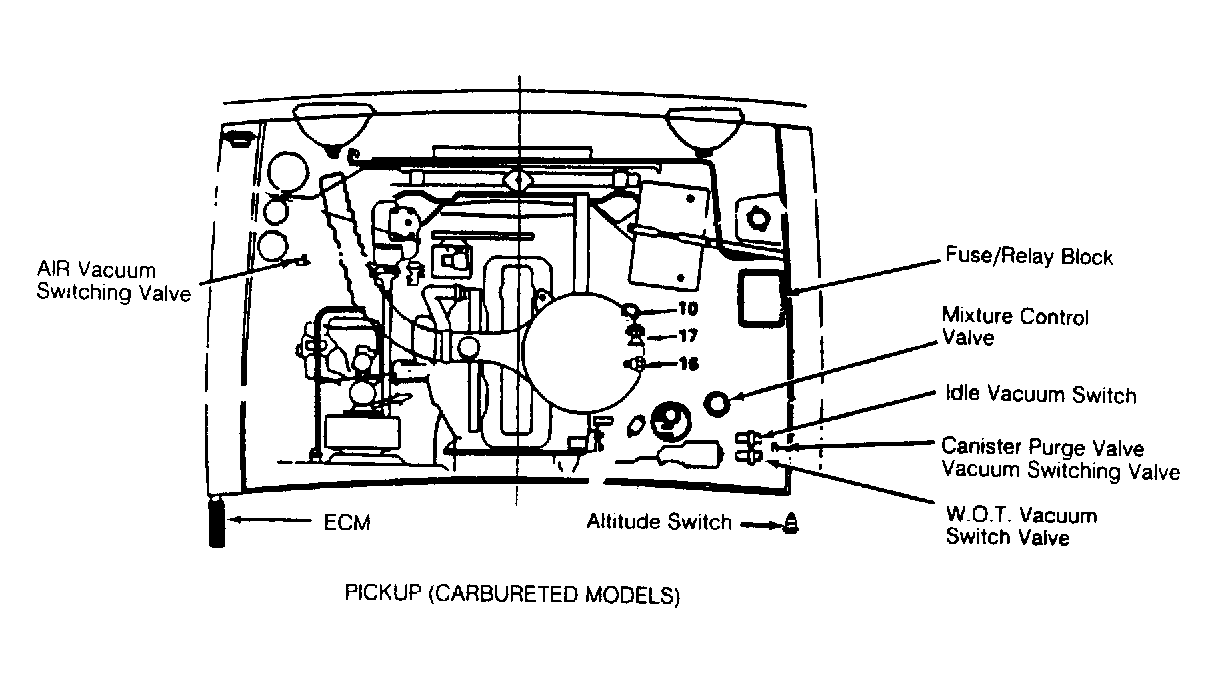

Pickup Behind left kick panel. See Figure & Figure .

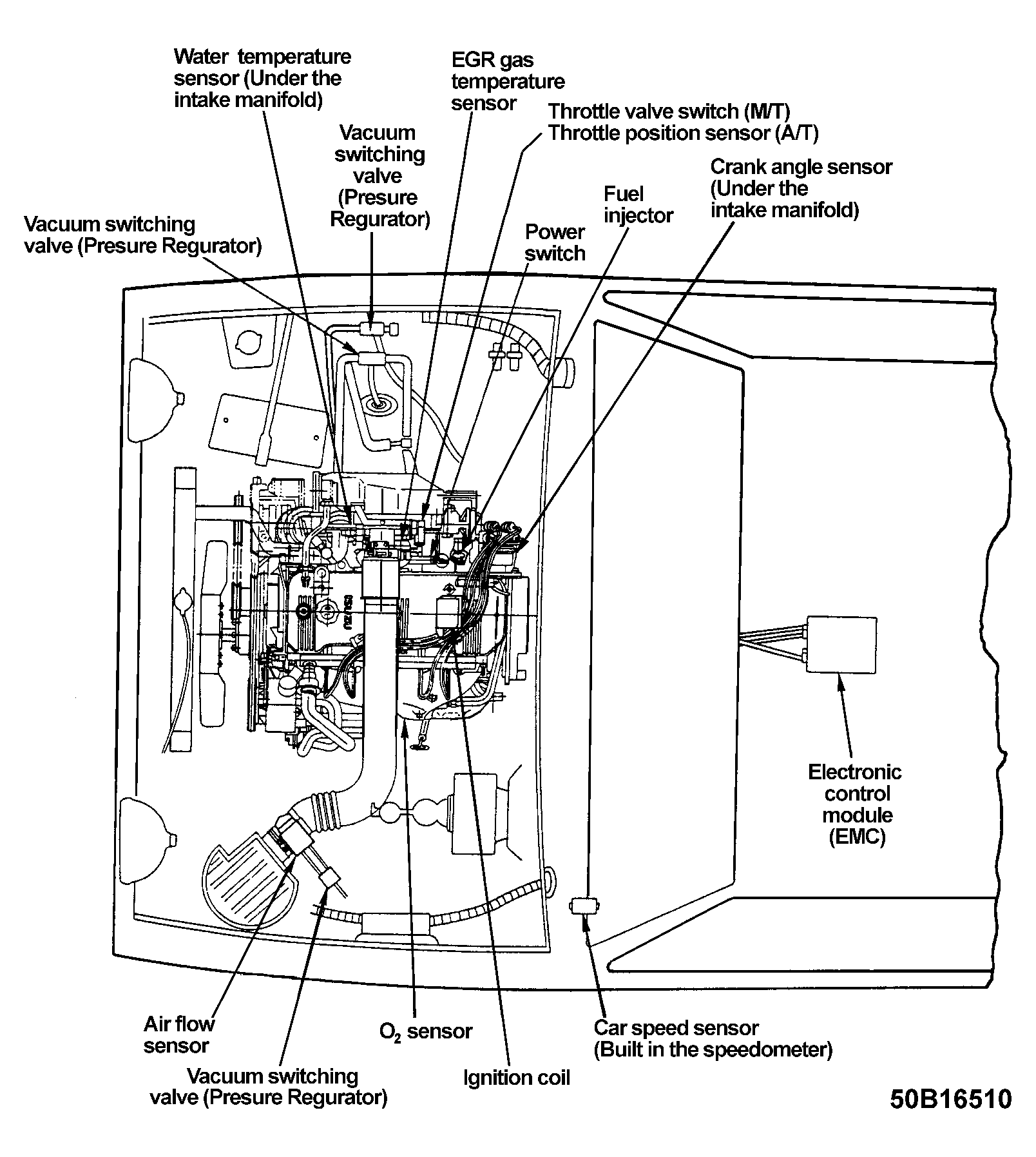

Trooper II Under front end of center console. See Figure , Figure & Figure .
