Home >> Isuzu >> 1989 >> I-Mark LS >> Repair and Diagnosis >> Engine Performance >> System >> Tests W/Codes - CARBURETED >> Trouble Code Charts >> Code 13 - Oxygen (O2) Sensor Circuit

Code 13 - Oxygen (O2) Sensor Circuit

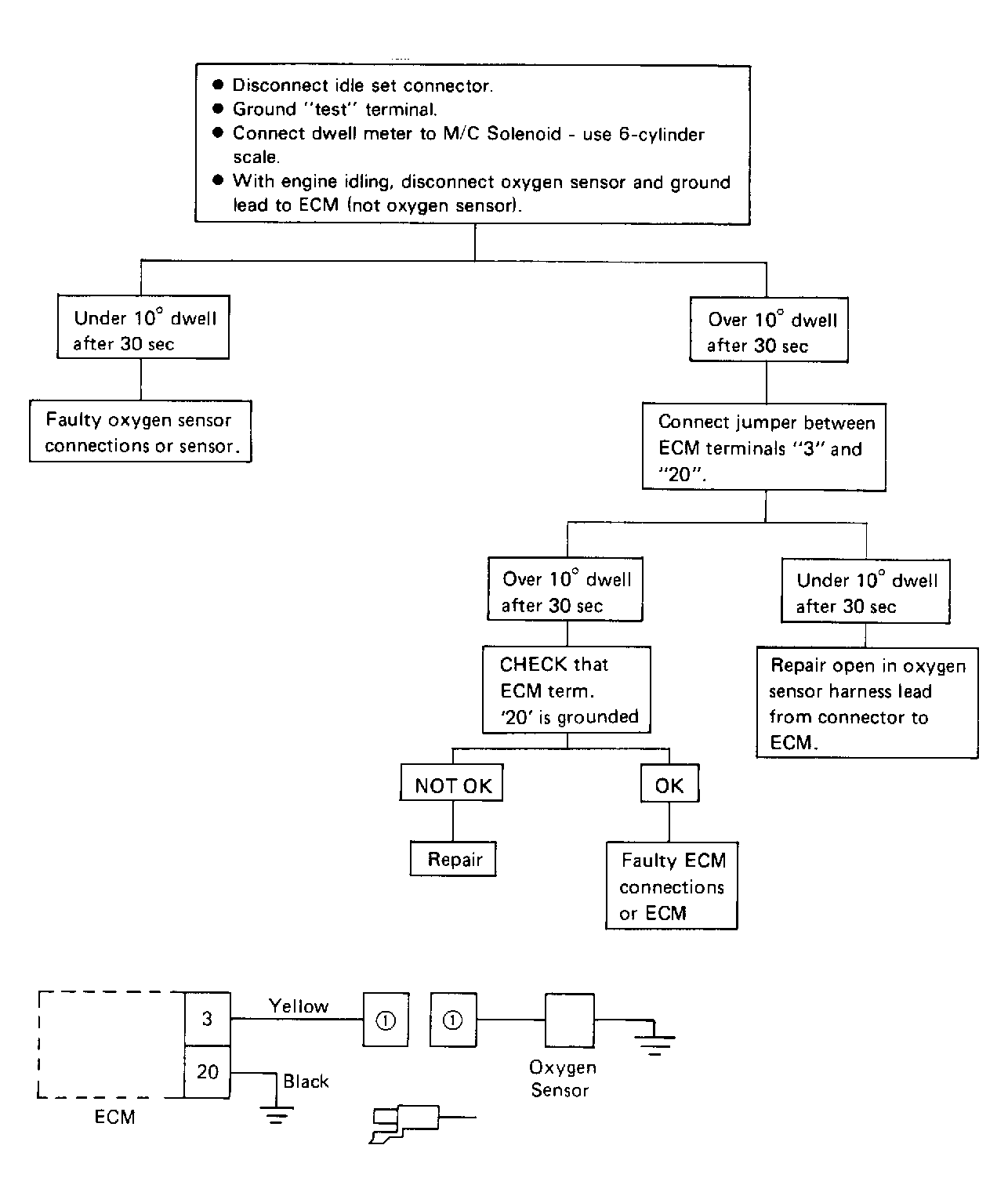

Fig 1: Flow Chart - Code 13, Oxygen Sensor Circuit

G122153

Courtesy of ISUZU MOTOR CO.
