Using Scan Tool Method

Scan tool can be connected to ALDL connector and trouble code will be displayed with ignition on and engine running.

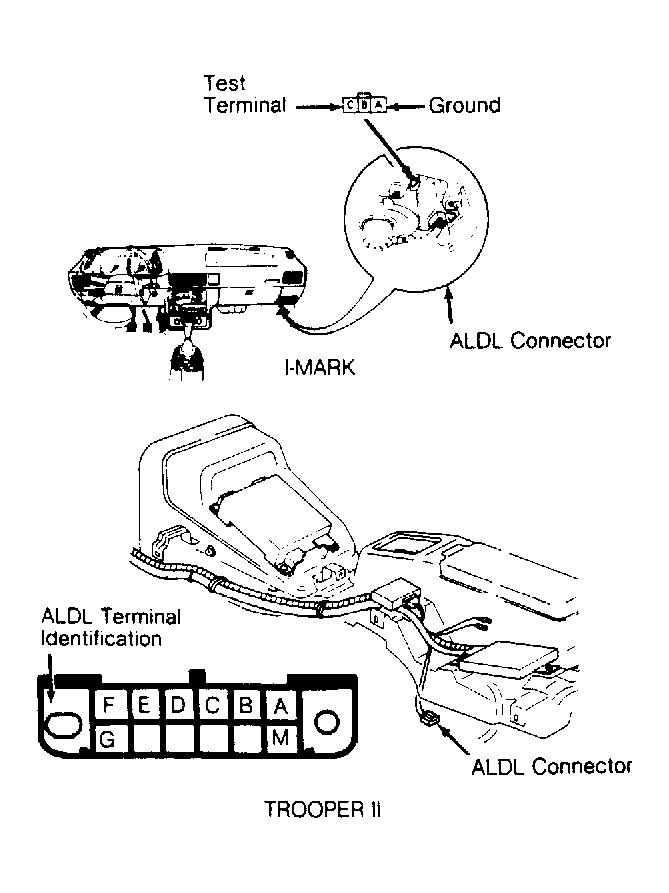

Fig 1: Installing ALDL Connector Jumper Wire
G122167Courtesy of ISUZU MOTOR CO.
Fig 2: Typical Trouble Code Display
G122168Courtesy of ISUZU MOTOR CO.
