Home >> Isuzu >> 1989 >> Impulse 2.3 L, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Tests W/Codes >> Diagnostic Circuit Check >> Notes

Diagnostic Circuit Check: Notes

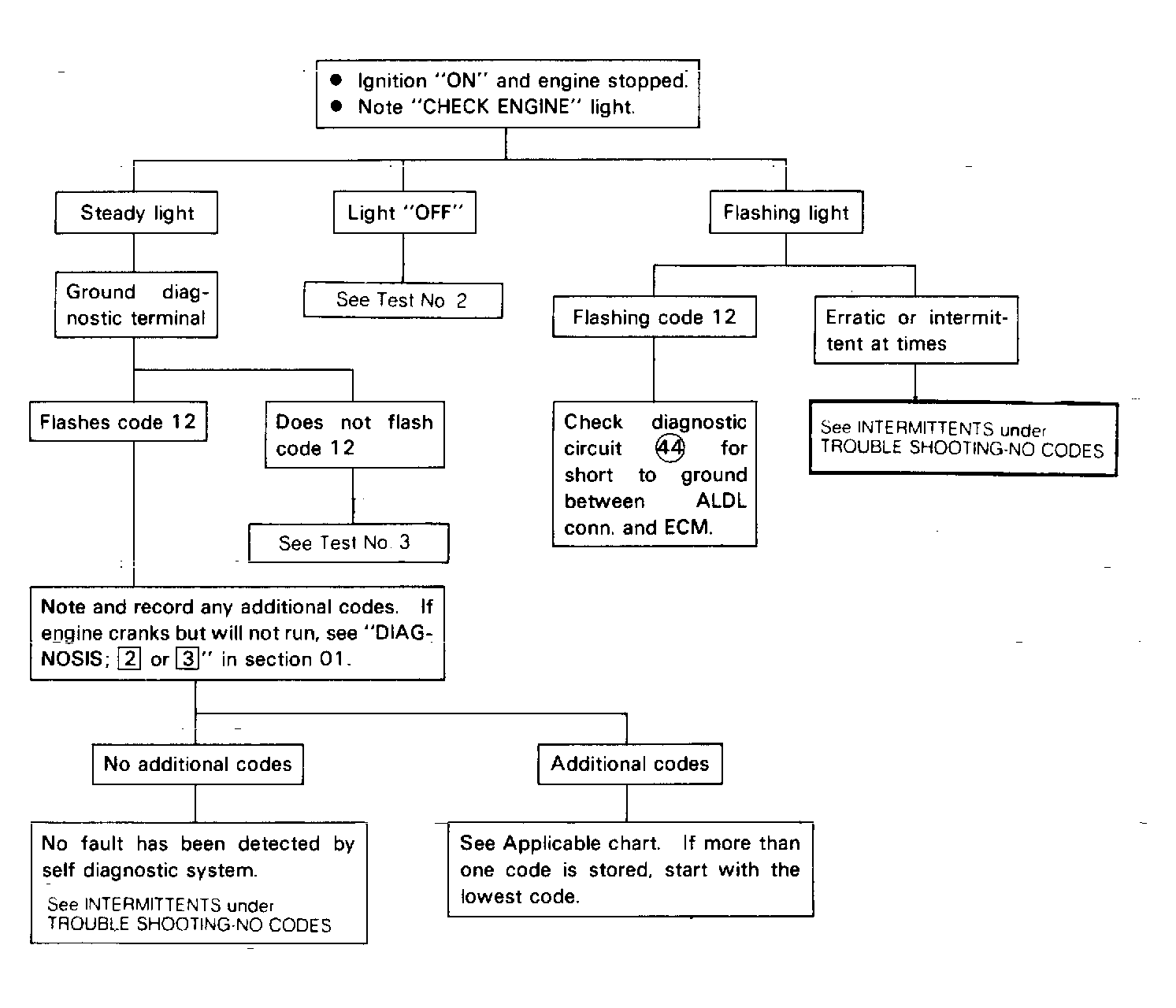

Fig 1: Flow Chart - Diagnostic Circuit Check

G122264

Courtesy of ISUZU MOTOR CO.
