Component Tests: Diode

See circuit tester to resistance range and check continuity. See Fig 1 and Fig 2 .

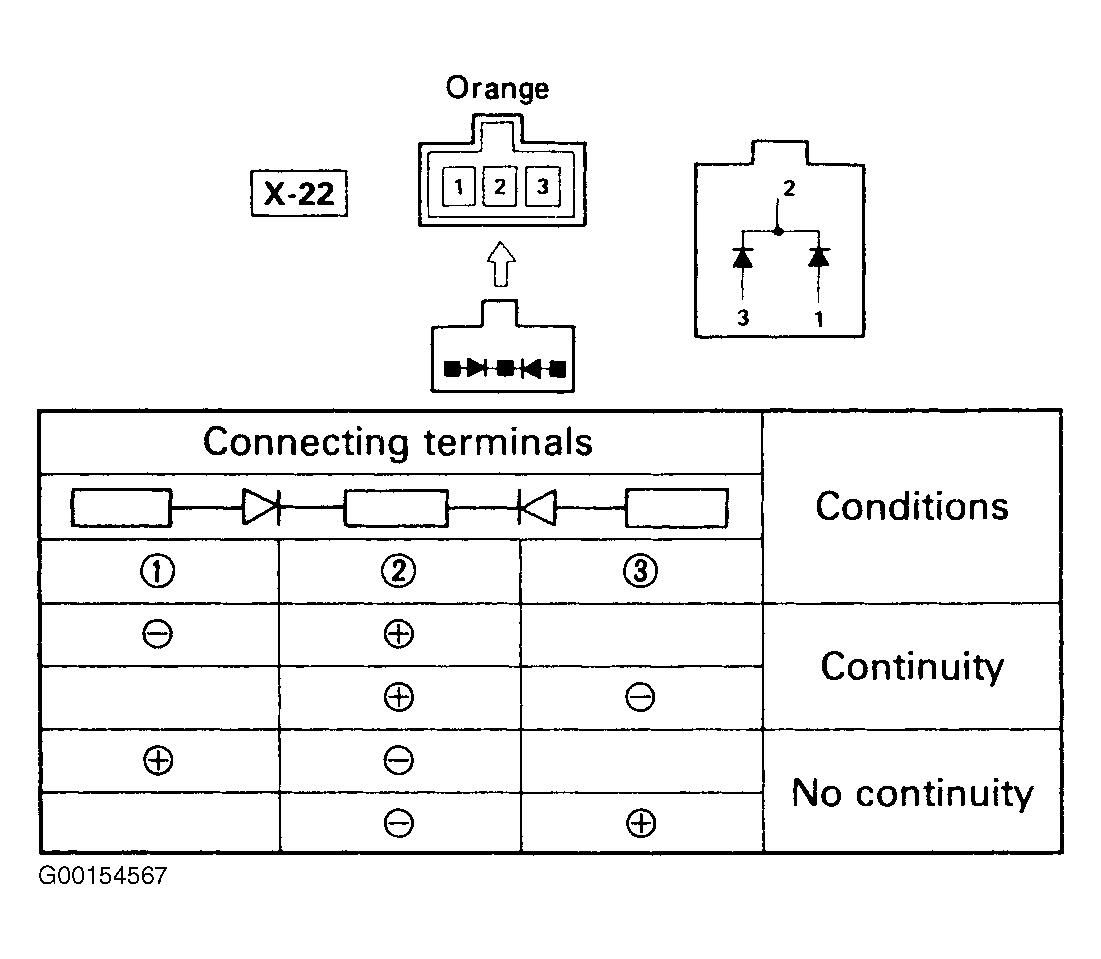

Fig 1: Testing Diode Continuity (1 Of 2)

Courtesy of ISUZU MOTOR CO.

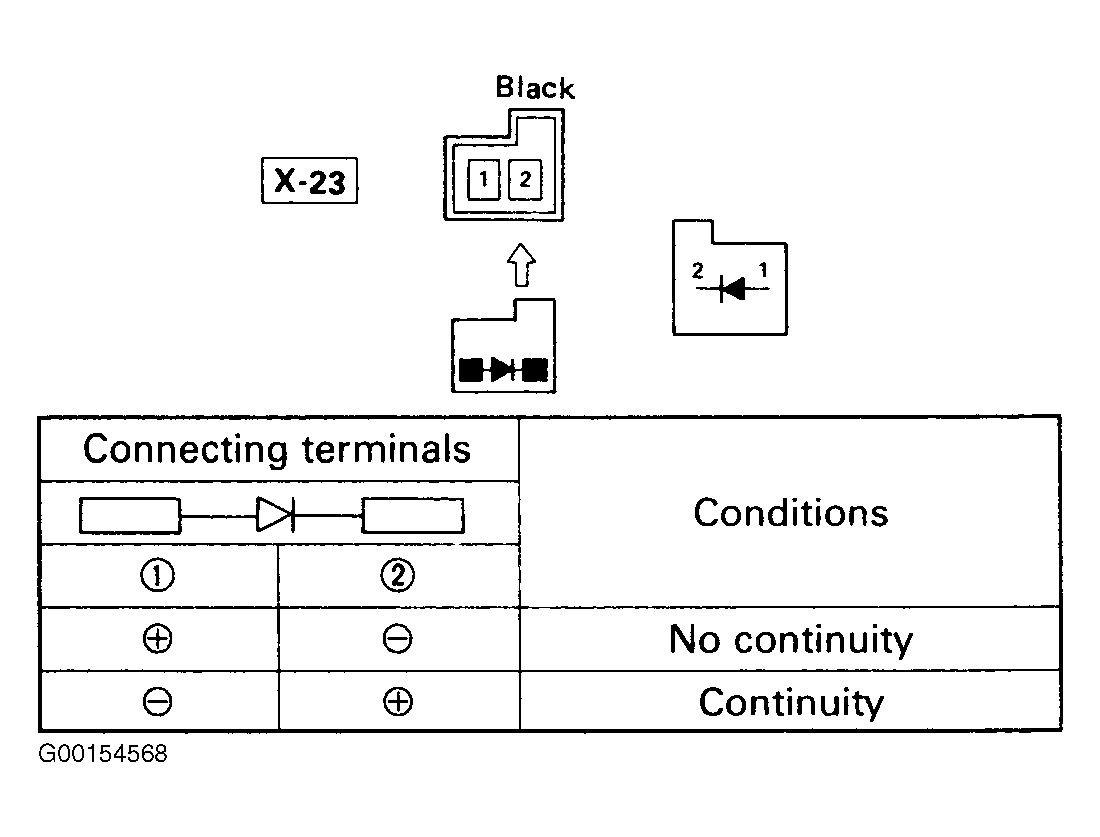

Fig 2: Testing Diode Continuity (2 Of 2)

Courtesy of ISUZU MOTOR CO.
