Home >> Isuzu >> 1990 >> Impulse Automatic >> Repair and Diagnosis >> Body & Frame >> Headlight Doors >> Component Tests >> Lighting Switch

Lighting Switch

Check continuity between switch connector terminals. See Fig 1 .

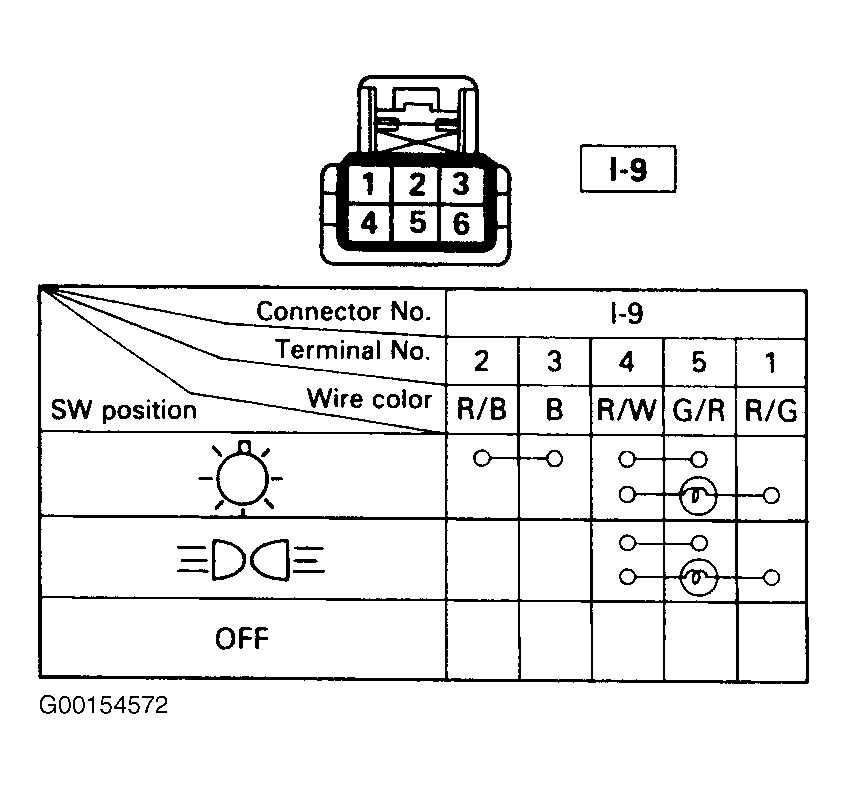

Fig 1: Testing Lighting Switch Continuity
G00154572Courtesy of ISUZU MOTOR CO.
