Component Location

COMPONENT LOCATIONS

Component	Location
Power Mirror Switch	Drivers Side Dash Panel, See Fig 1
Power Mirror Motors	Inside Mirror, See Fig 1
Junction Block	Lower Engine Bay, Behind Drivers Side Front Wheel, See Fig 1

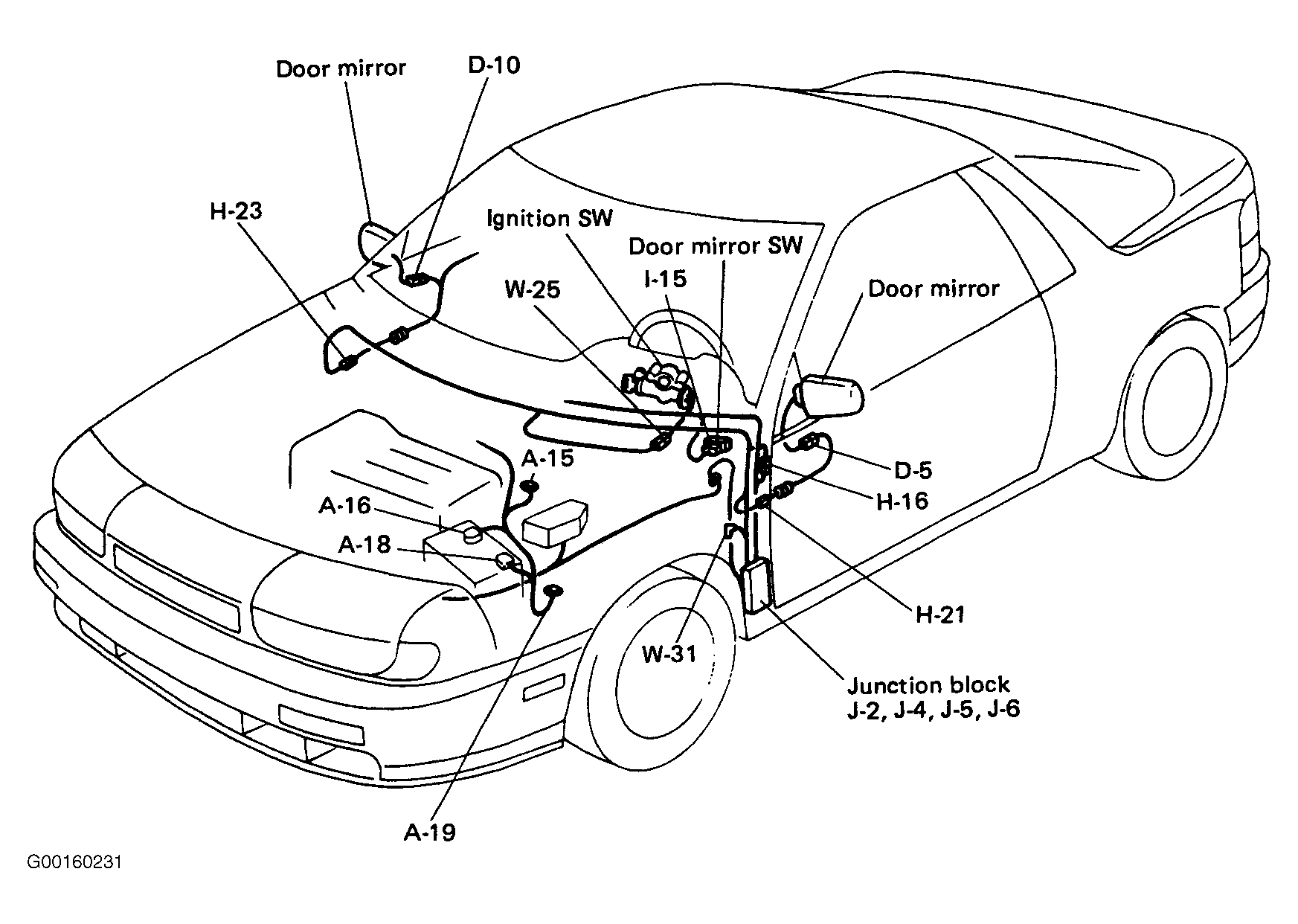

Fig 1: Power Mirror Component Location

Courtesy of ISUZU MOTOR CO.
