Door Mirror Operating Test

Connect battery voltage (12 V) to door mirror switch connector (I-15), see WIRING DIAGRAMS  , and check operation. See Fig 1 .

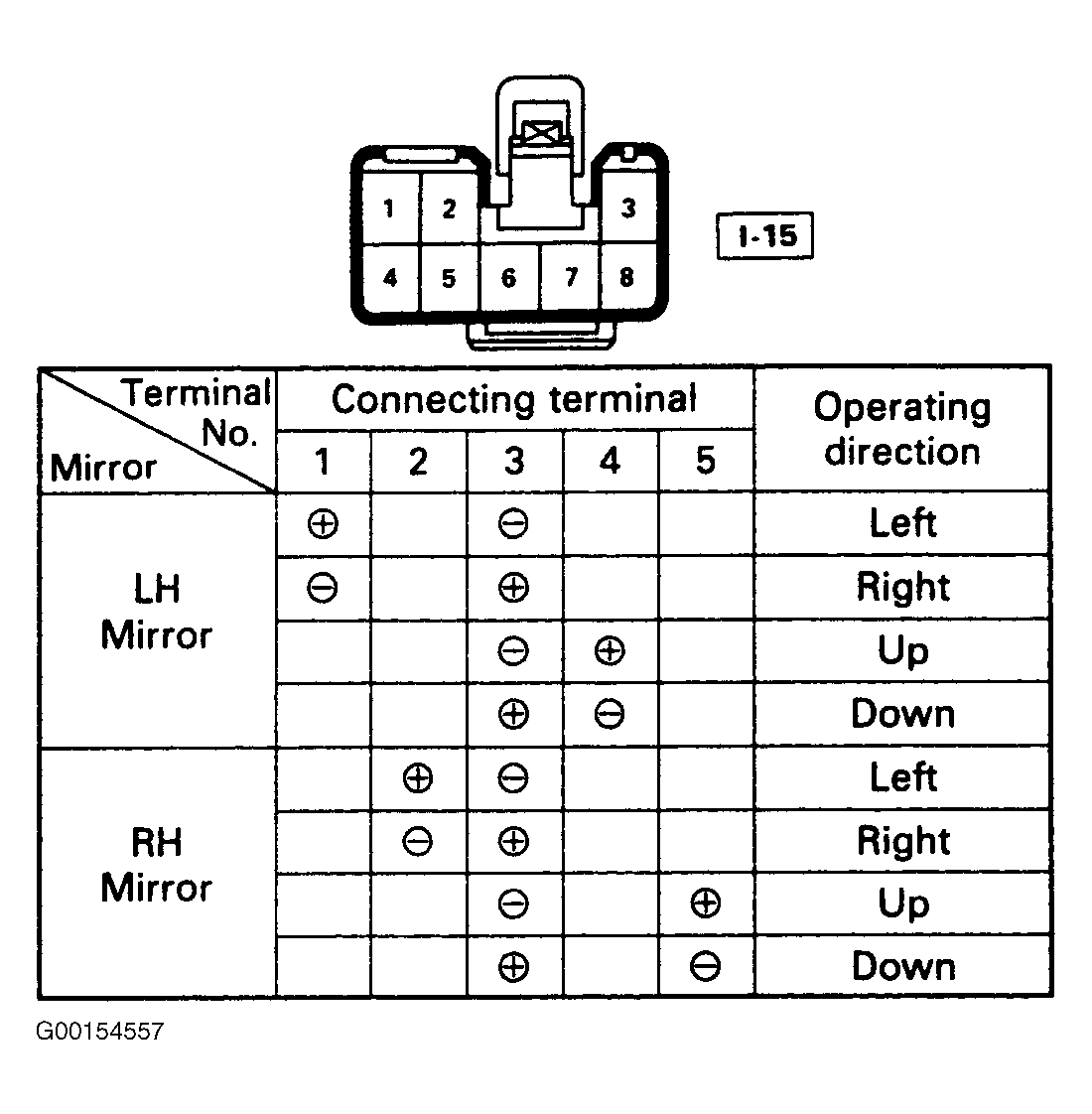

Fig 1: Identifying Operation Test Terminals

Courtesy of ISUZU MOTOR CO.
