Toe-In Adjustment

Adjust front toe-in by turning tie rod sleeves. Adjust rear toe-in by turning sleeve on rear lateral link. See Fig 1 .

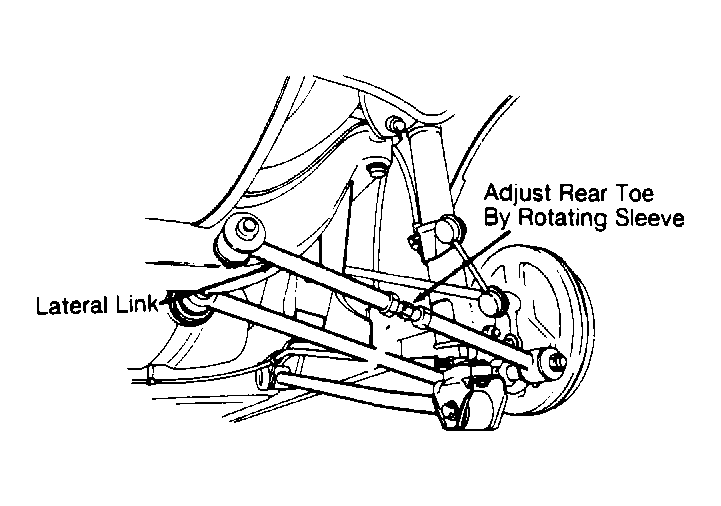

Fig 1: Adjusting Rear Toe-In
G91F03176Courtesy of ISUZU MOTOR CO.
