Power Window Main Switch
- Remove switch from door trim panel. Disconnect power window switch harness connector. Using a DVOM, check continuity between specified connector terminals with power window switch in specified position. See POWER WINDOW MAIN SWITCH CONTINUITY CHART table.

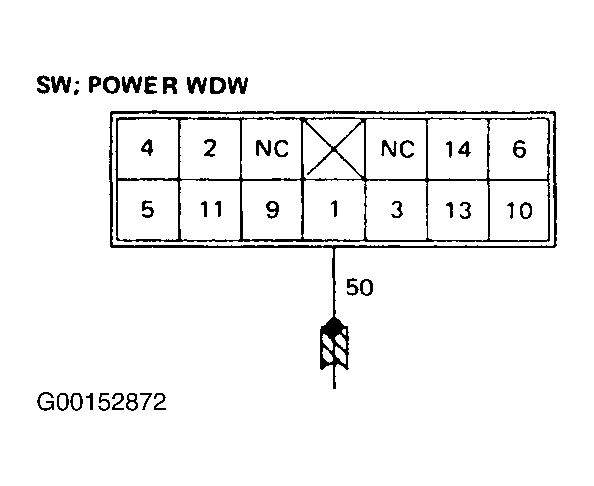

- For switch terminal identification, see Figure . If continuity is not as specified, replace power window main switch. See POWER WINDOW SWITCH under REMOVAL & INSTALLATION.
POWER WINDOW MAIN SWITCH CONTINUITY CHART
| Switch & Position | Check Continuity Between Terminals | |
|---|---|---|
| Left Front | ||
| DOWN | 10 & 12; 5 &11 | |
| OFF | 5 & 12; 9 & 12 | |
| UP | 5 & 11; 9 & 12 | |
| Right Front | ||
| DOWN | 8 & 11; 2 & 9 | |
| OFF | 8 & 9; 2 & 12 | |
| UP | 2 & 9; 8 & 9 | |
| Left Rear | ||
| DOWN | 6 & 9; 7 & 13 | |
| OFF | 6 & 8; 9 & 13 | |
| UP | 6 & 11; 9 & 13 | |
| Right Rear | ||
| DOWN | 7 & 11; 1 & 9 | |
| OFF | 6 & 9; 9 & 13 | |
| UP | 1 & 11; 7 & 9 | |
| Lock | ||
| OFF (Unlock) | 10 & 11 | |
| ON (Unlock) | No Continuity Between Terminals No. 10 & 11 | |
