Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Cruise Control Module (2.8L) | On right side of glove box. | |
| Door Lock Controller | On left kick panel. | |
| EGR Control Module (2.8L) | On right rear corner of engine, next to distributor. | |
| Elapsed Timer Module (2.8L) | Under right side of dash. See Figure . | |
| Electronic Control Module (ECM) | ||

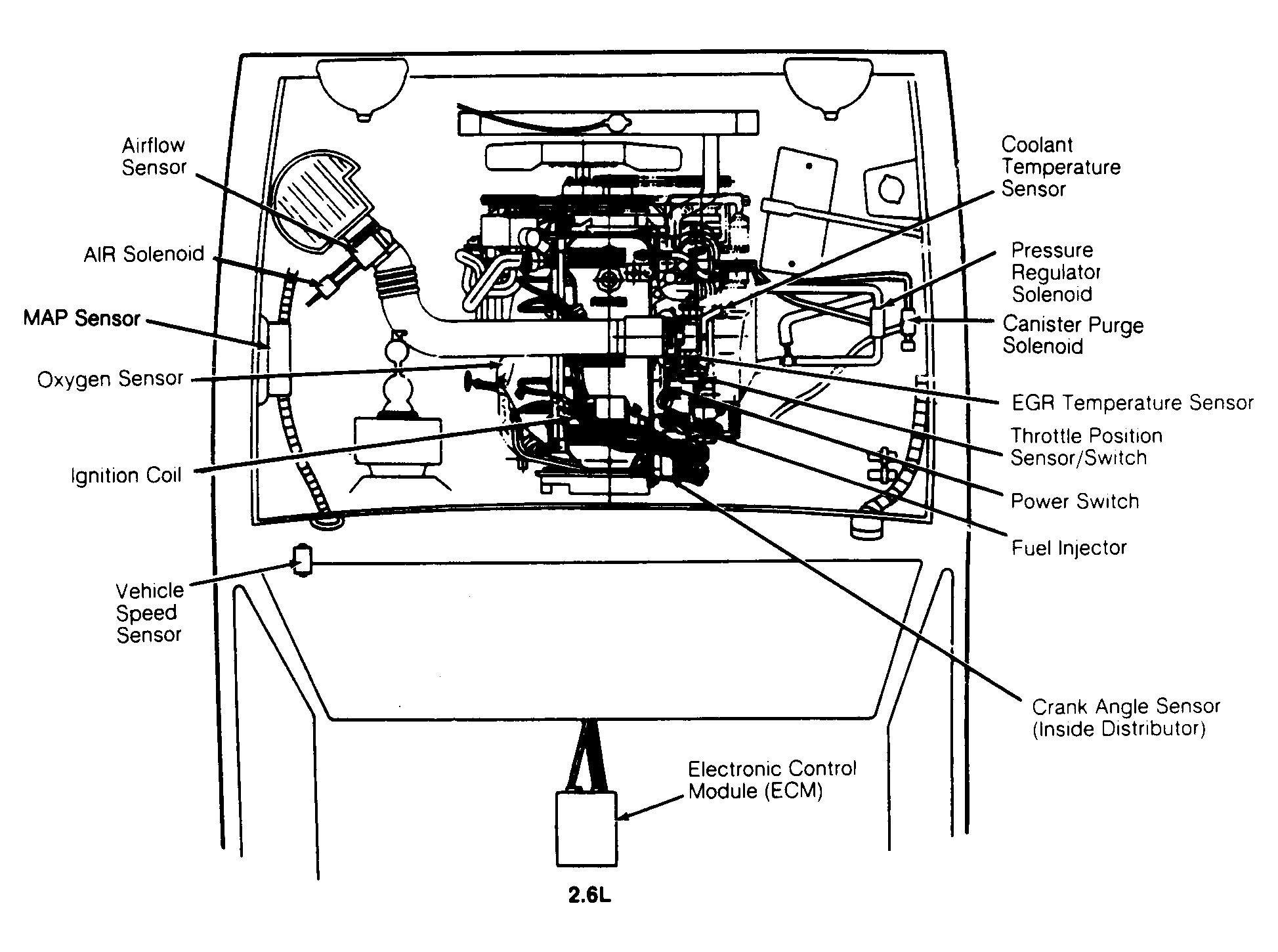

| 2.6L Engine | Under center console. See Figure . | |
| 2.8L Engine | Under center console. See Figure . | |

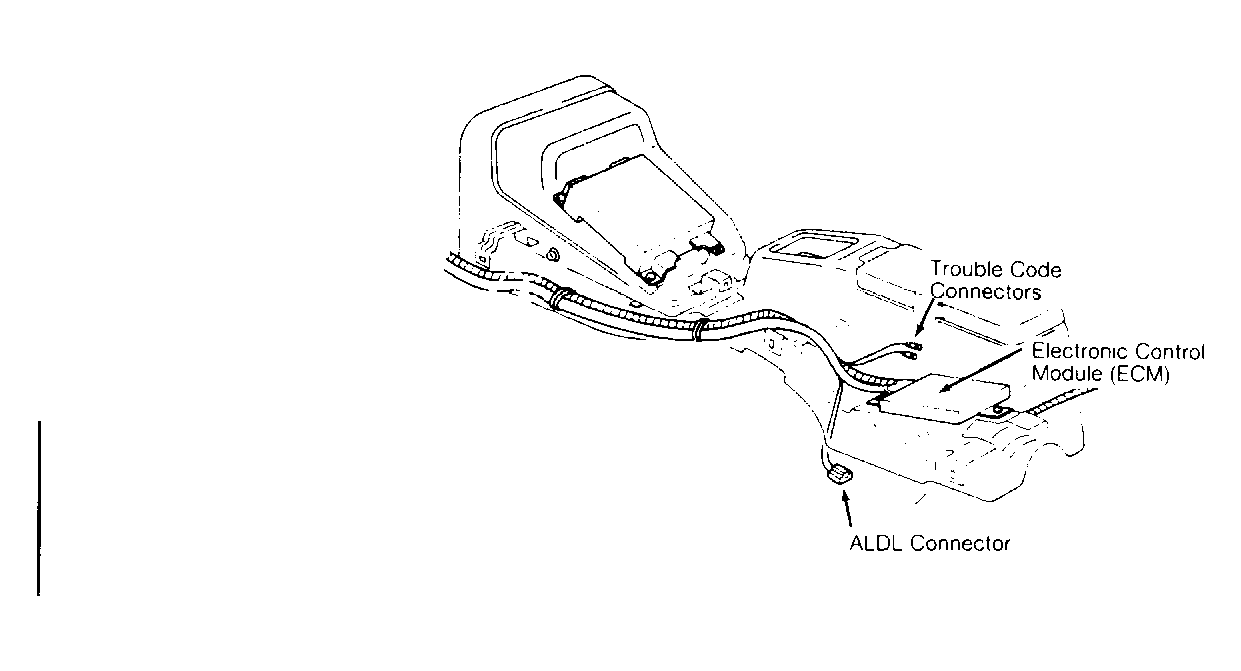

| View of ALDL Connector & ECM | Under center console. See Figure . | |
| Electronic Trans. Control Unit (2.6L) | Behind left side of dash, at kick panel. | |
| ESC Module (2.8L) | On right inner fender panel. See Figure . | |
| EST Distributor | At rear of engine. See Figure . | |
| Seat Belt/Lights/Ignition Chime Module | Behind right side of dash, near kick panel. | |
