Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Cut Control Unit | Behind right side of dash, below glove box. | |
| A/C Mode Control Unit | Behind center of console. | |
| A/C Temperature Lever & Fan Control Unit | Behind center of console. | |
| Anti-Theft Control Unit | Behind right kick panel. | |
| Automatic Door Lock Control Unit | On rear of left door, behind trim panel. | |
| Cruise Control Unit | Behind right kick panel. | |
| Diagnostic Energy Reserve Module (DERM) | Behind center of console. | |
| Elect. Brake Control Module (EBCM) | Under right front seat. | |
| Electronic Control Module (ECM) | ||

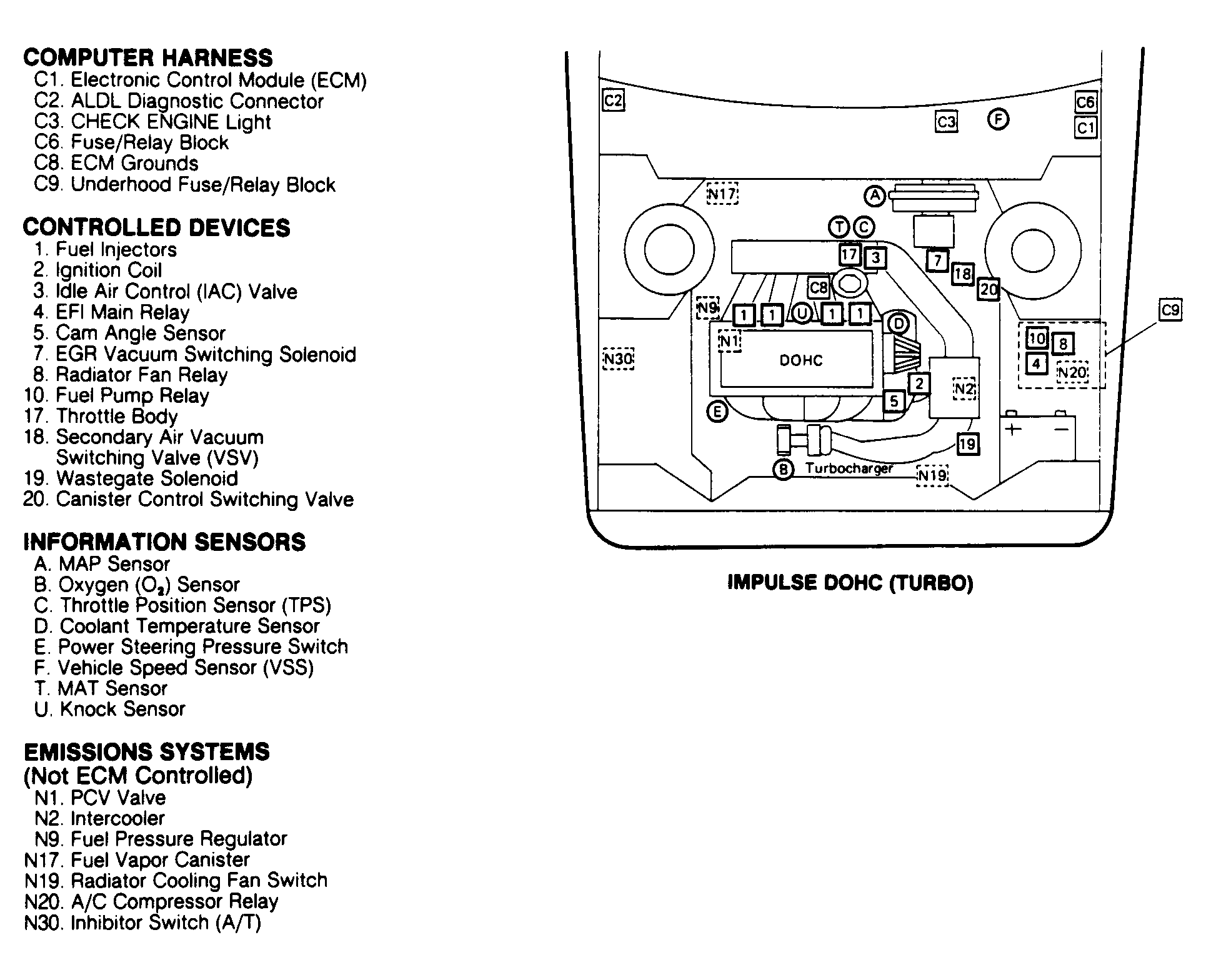

| Impulse DOHC (Turbo) | Behind left side of dash. See Figure . | |

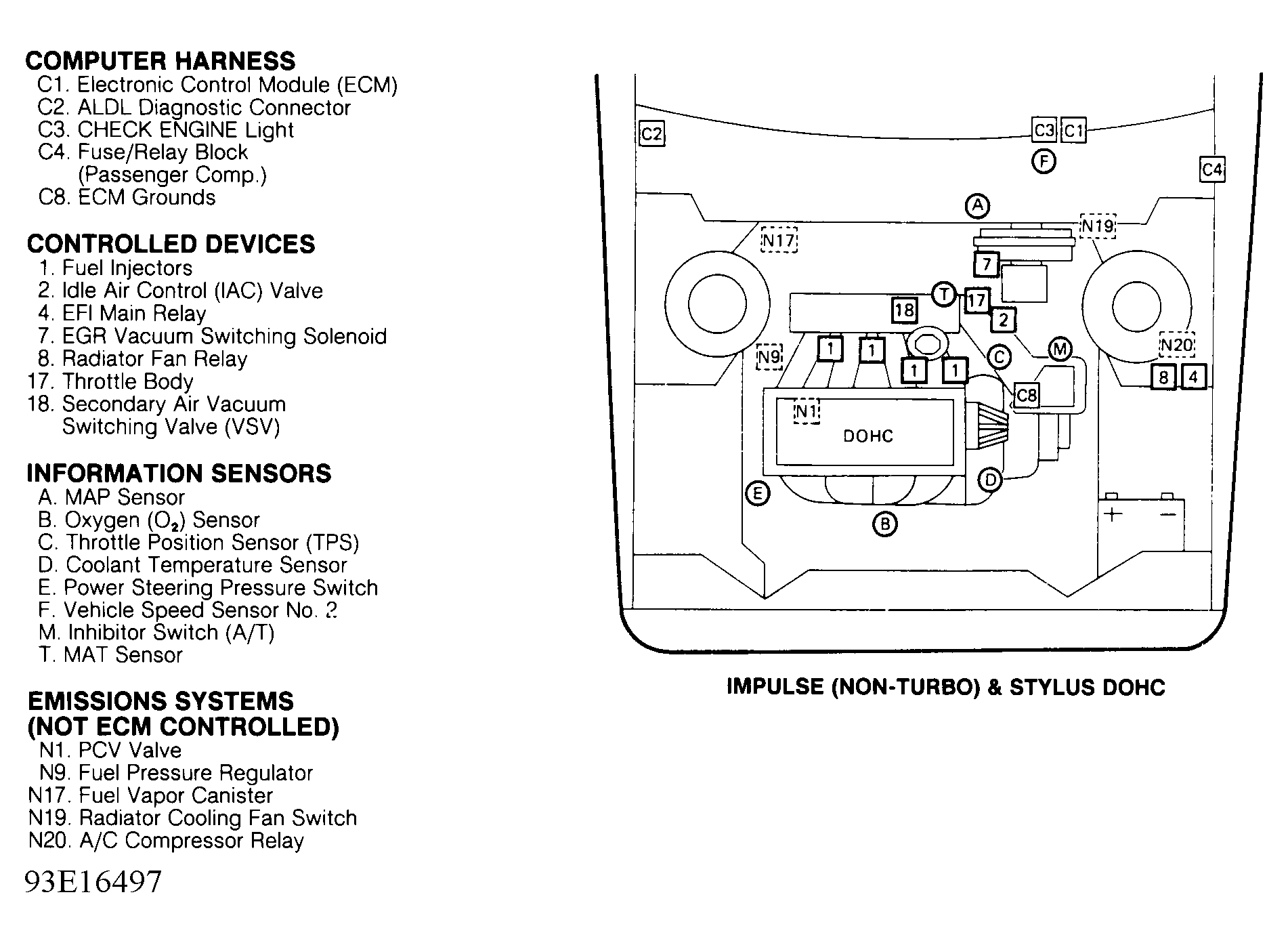

| Impulse (Non-Turbo) & Stylus DOHC | Behind left side of dash. See Figure . | |

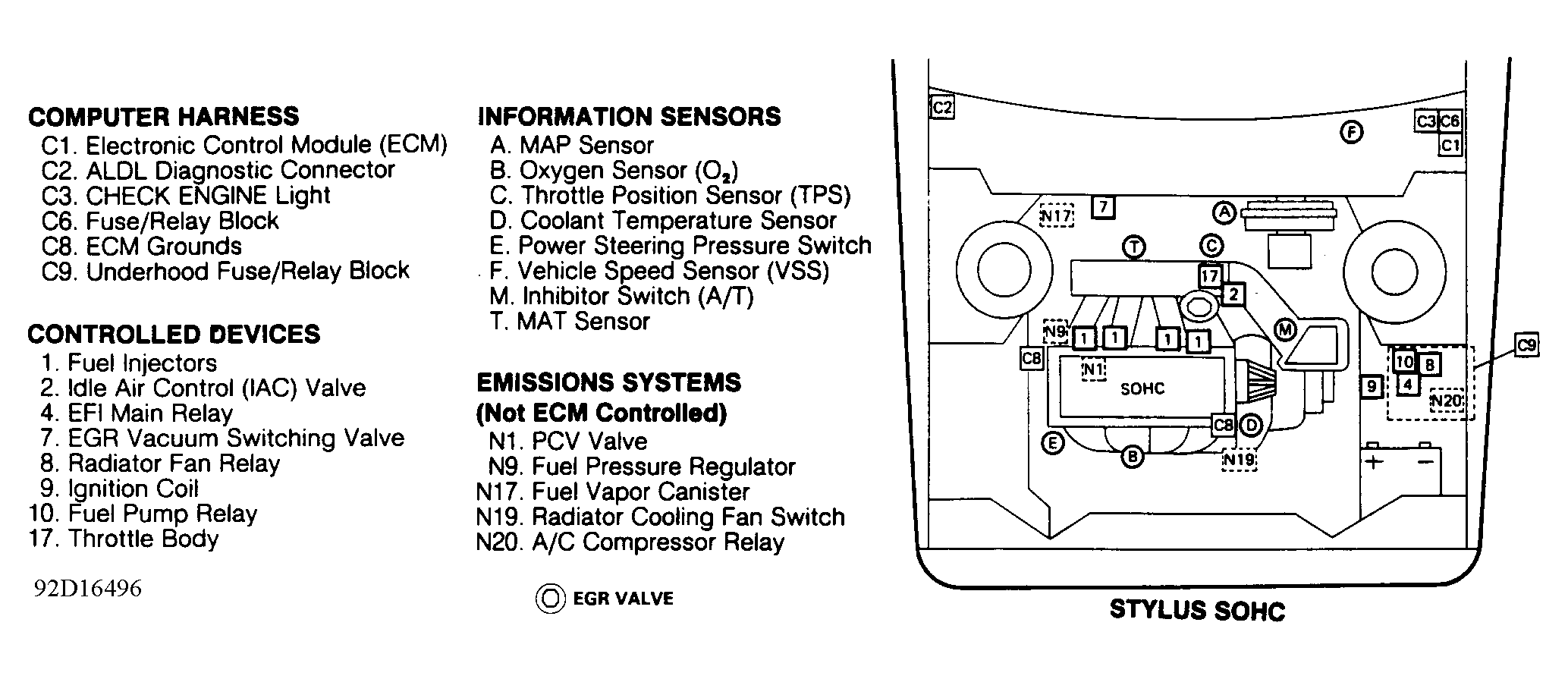

| Stylus SOHC | Behind left side of dash. See Figure . | |
| Shift Lock Control Unit | Under center console, at base of gear selector. | |
| Sun Roof Control Unit | On right rear of roof, above headliner. | |
| Transmission Control Module (TCM) | Behind left side of dash. | |
