Ground Circuit

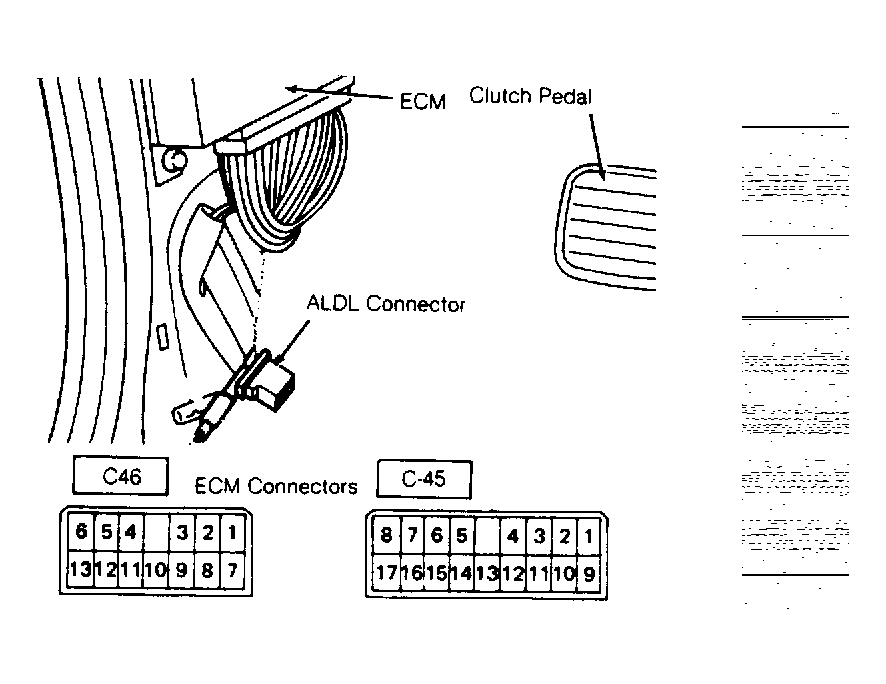

Using an ohmmeter, check for continuity to ground on ECM connector terminal C46-13. See Figure . ECM is located behind left kick panel. See Figure . Resistance should be zero ohms. If not, repair open to ground.
