Code 13 - Oxygen Sensor Circuit

Fig 1: Code No. 13 Schematic, Oxygen Sensor Circuit
G50C08441Courtesy of ISUZU MOTOR CO.
Fig 2: Code No. 13 Component Diagram, Secondary Air Injection Check
G91C16933Courtesy of ISUZU MOTOR CO.

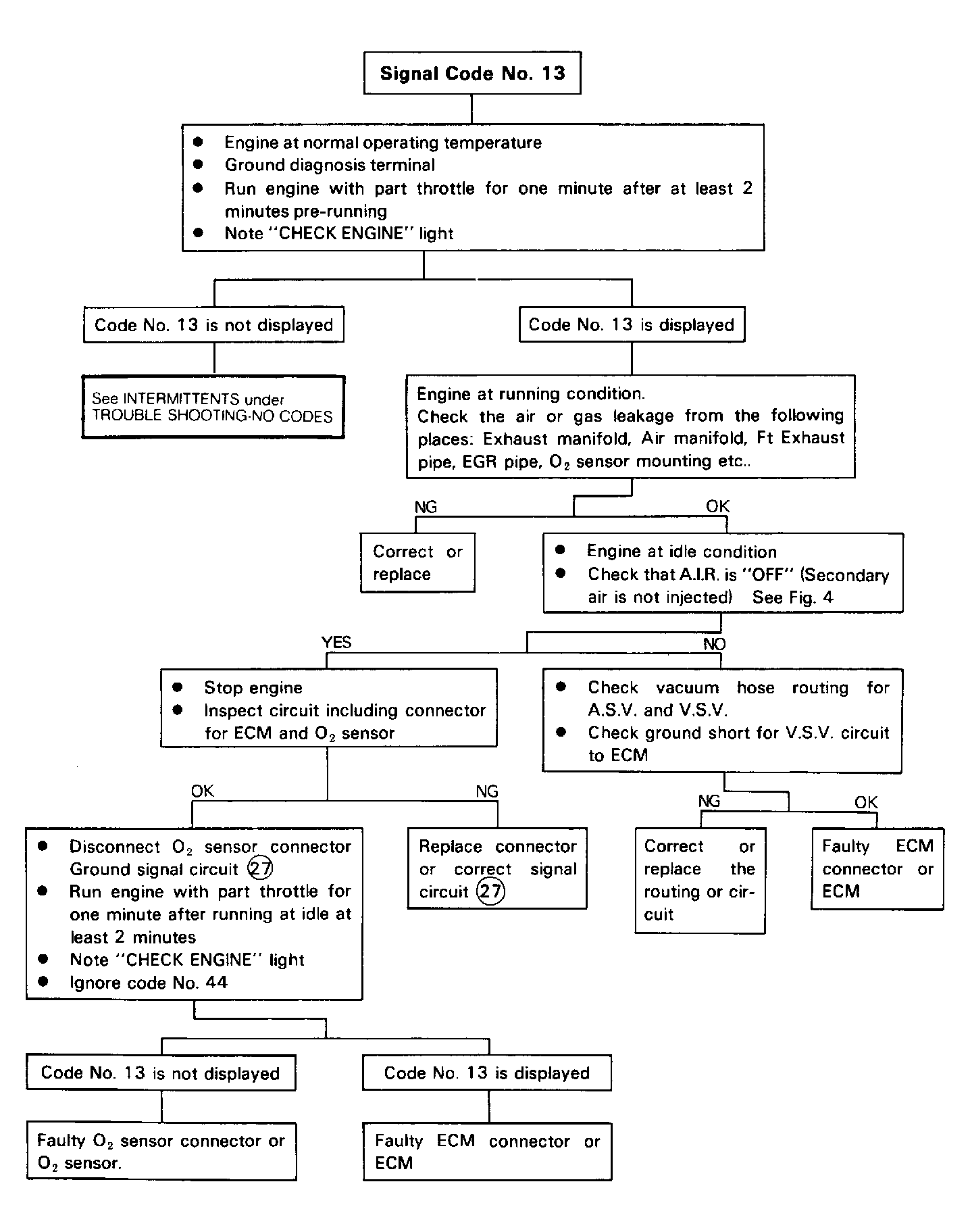

Fig 3: Code No. 13 Flow Chart, Oxygen Sensor Circuit
G91D16934Courtesy of ISUZU MOTOR CO.
