Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | Under right front seat. | |
| Cruise Control Unit | Behind right kick panel. | |
| EGR Control Module (3.1L) | On right rear corner of engine. | |
| Elapsed Timer Module | Under right side of dash. See Figure . | |
| Electronic Control Module (ECM) | ||

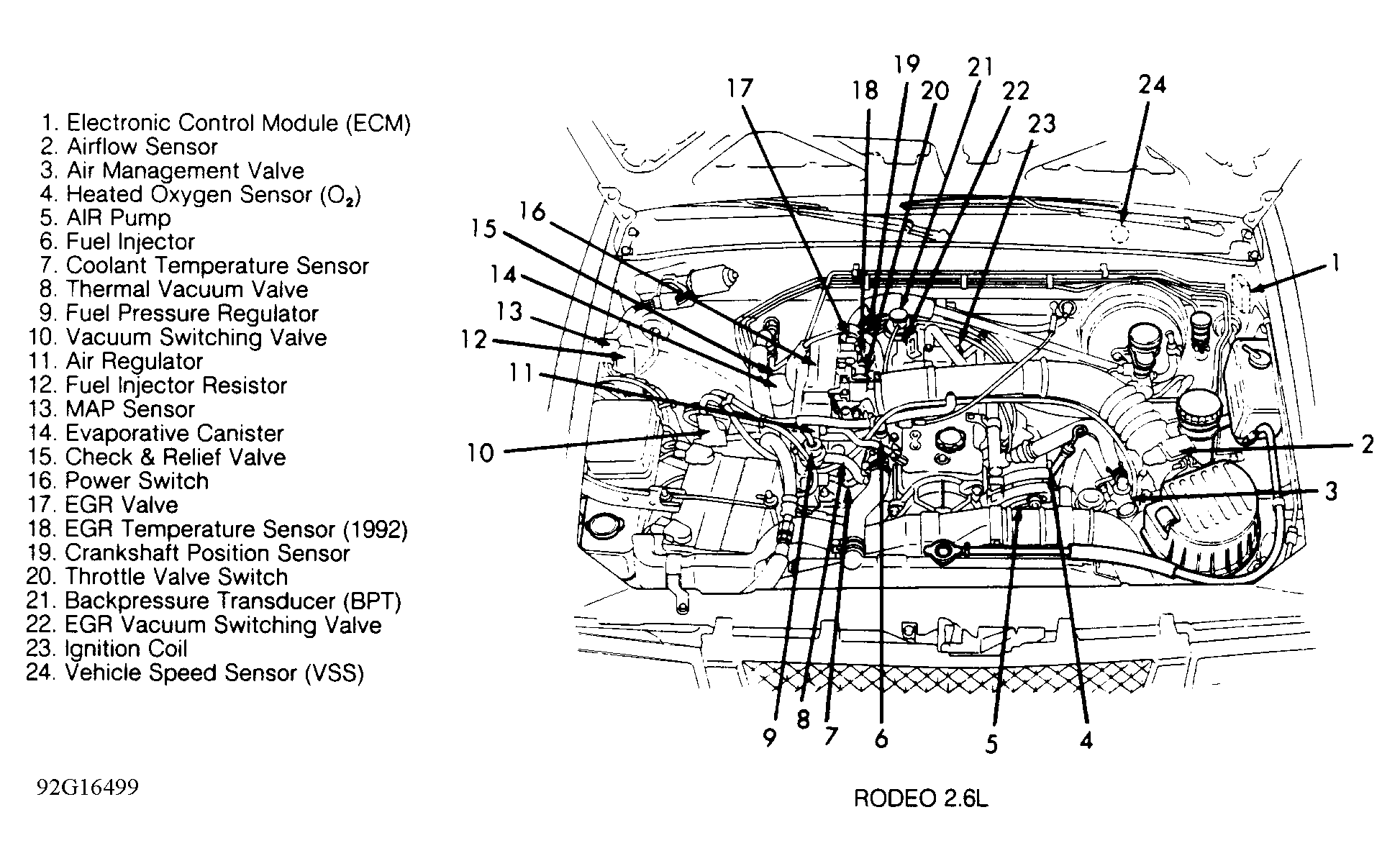

| Engine Compartment View (2.6L) | Behind left kick panel. See Figure . | |

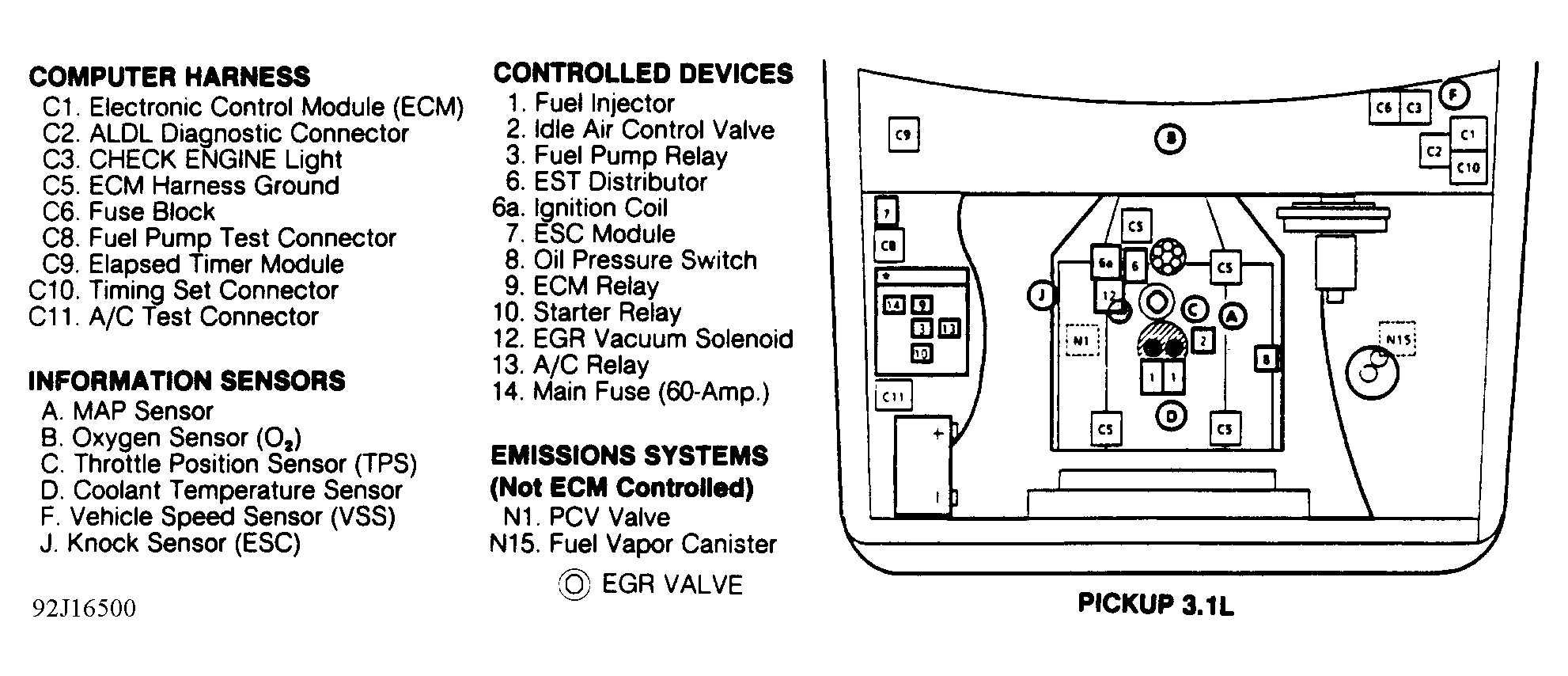

| Engine Compartment View (3.1L) | Behind left kick panel. See Figure . | |
| Electronic Spark Control (ESC) Module | On right side of engine compartment, on bracket. See Figure . | |
| Shift Lock Control Unit | Under center console, at base of gear selector. | |
| Transmission Control Module (TCM) | Behind left side of dash. | |
