Anti-Lock Brake System: Description

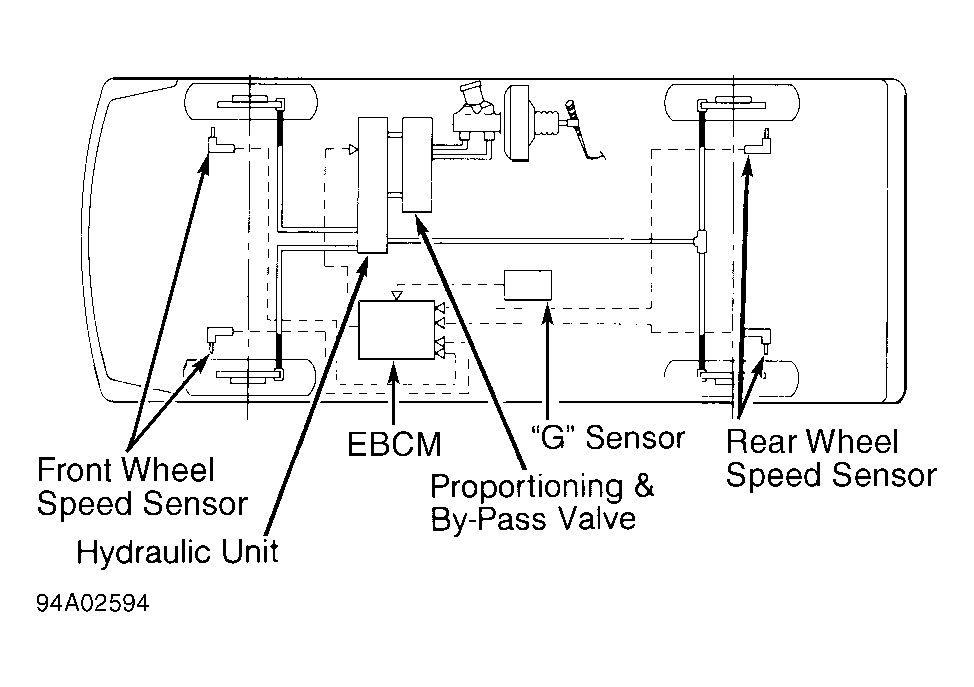

The optional Anti-Lock Brake System (ABS) operates on all 4 wheels. Wheel speed sensor and Electronic Brake Control Module (EBCM) can determine when a wheel is about to lock and adjust hydraulic pressure to maintain optimum braking. ABS system consists of an EBCM, "G" sensor, hydraulic unit, warning light and 4-wheel speed sensors. See Fig 1 .
NOTE:
For more information on brake system, see appropriate DISC & DRUM article. For Trooper with rear ABS, see REAR ANTI-LOCK article.
