Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Control Unit | On front end of center console. |
| Anti-Theft Controller | Behind left kick panel. |
| A/T Control Unit | Behind left side of dash. |
| Cruise Control Module | On right kick panel. |
| Door Lock Controller | Behind right kick panel. |

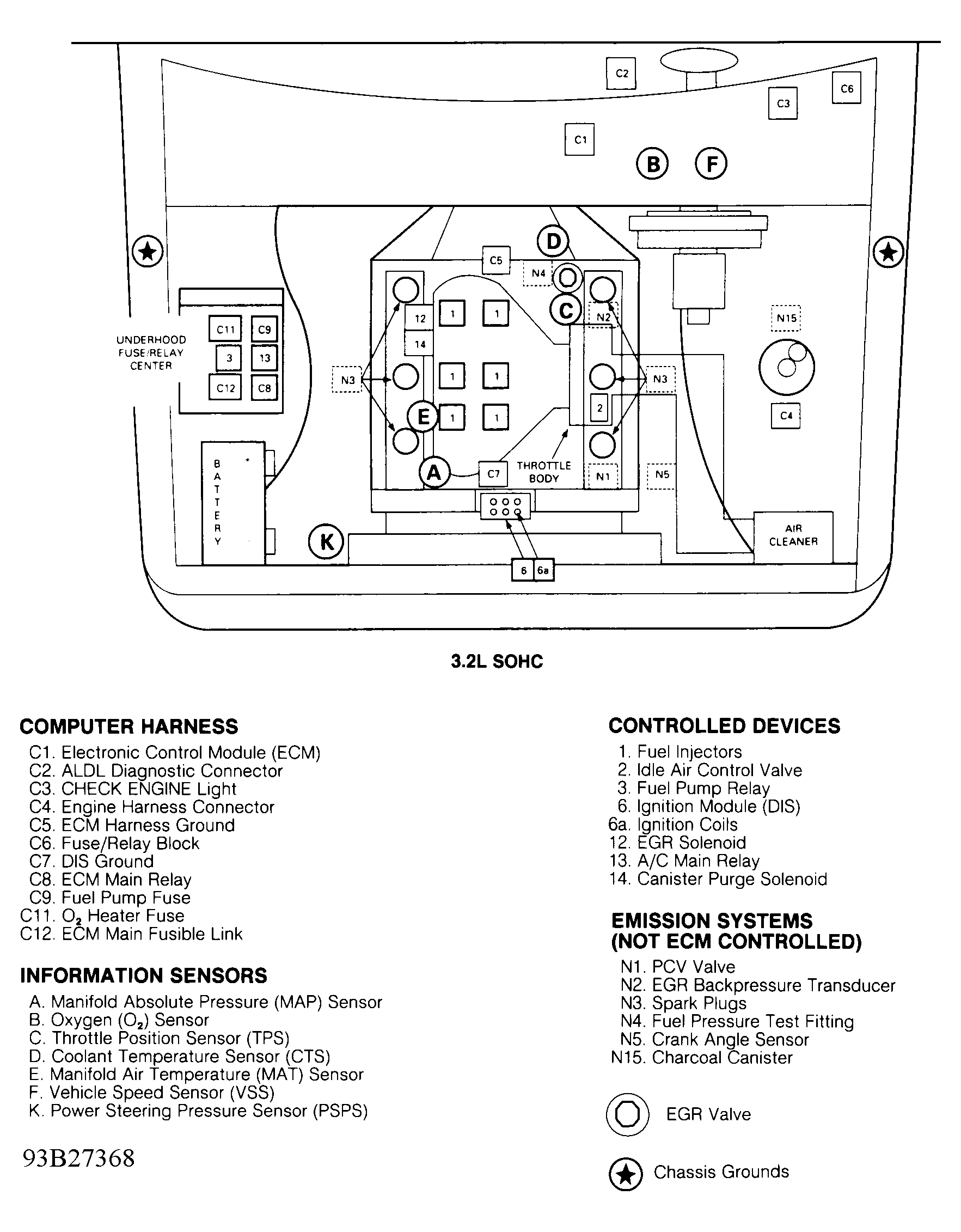

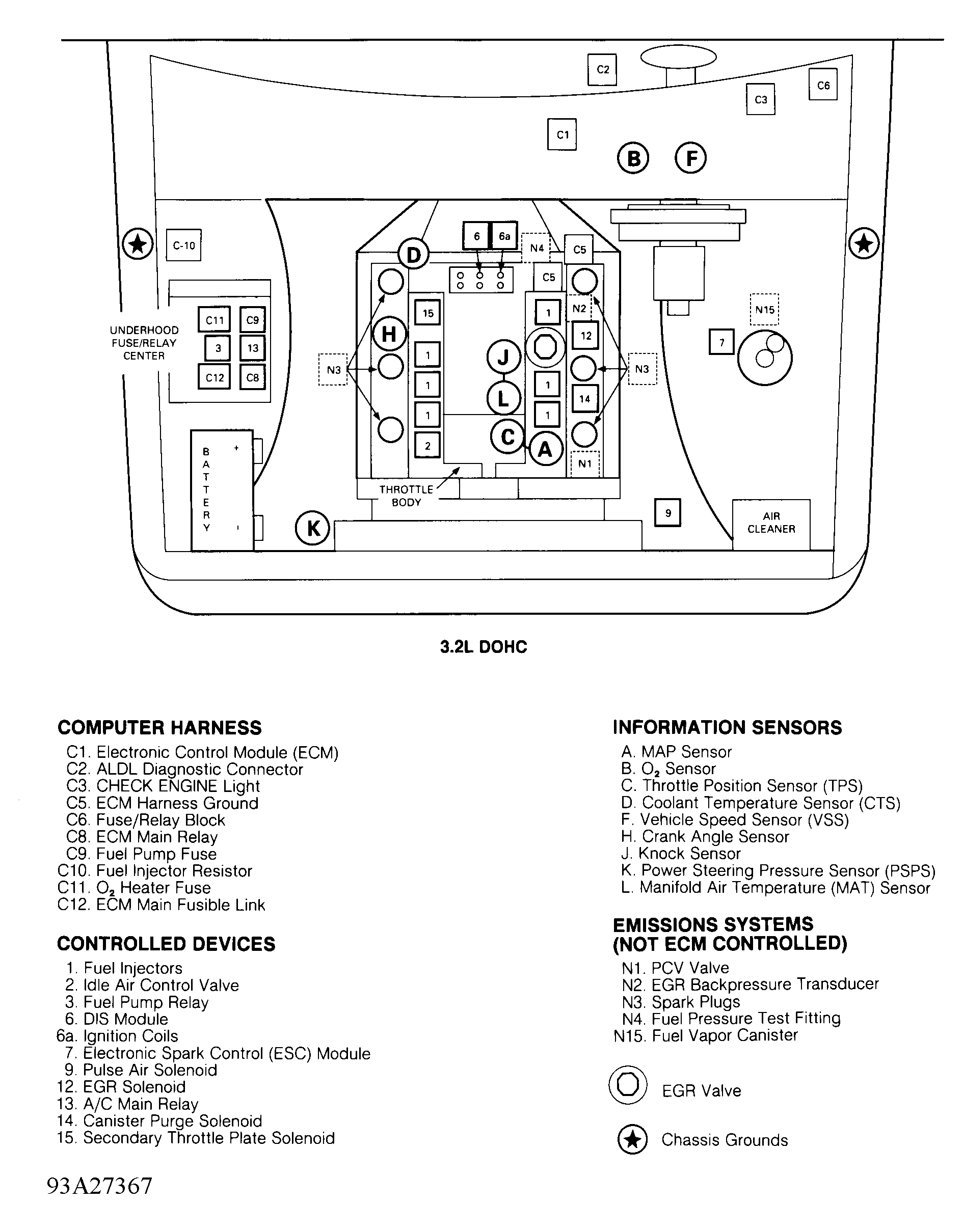

| Electronic Control Module (ECM) (3.2L DOHC) | Behind center of dash. See Figure & Figure . |
| Electronic Spark Control Module (DOHC) | On left inner fender panel, under charcoal canister. See Figure . |
| Shift Lock Controller | Under center console. |
