Component Testing: Voltmeter: Trooper

  1. Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Remove voltmeter from instrument cluster. Using an ohmmeter, measure resistance of voltmeter between (+) and (-) terminals. SeeFigure .
  2. Ensure resistance is 79.2-96.8 ohms. If resistance is not within specification, replace voltmeter.

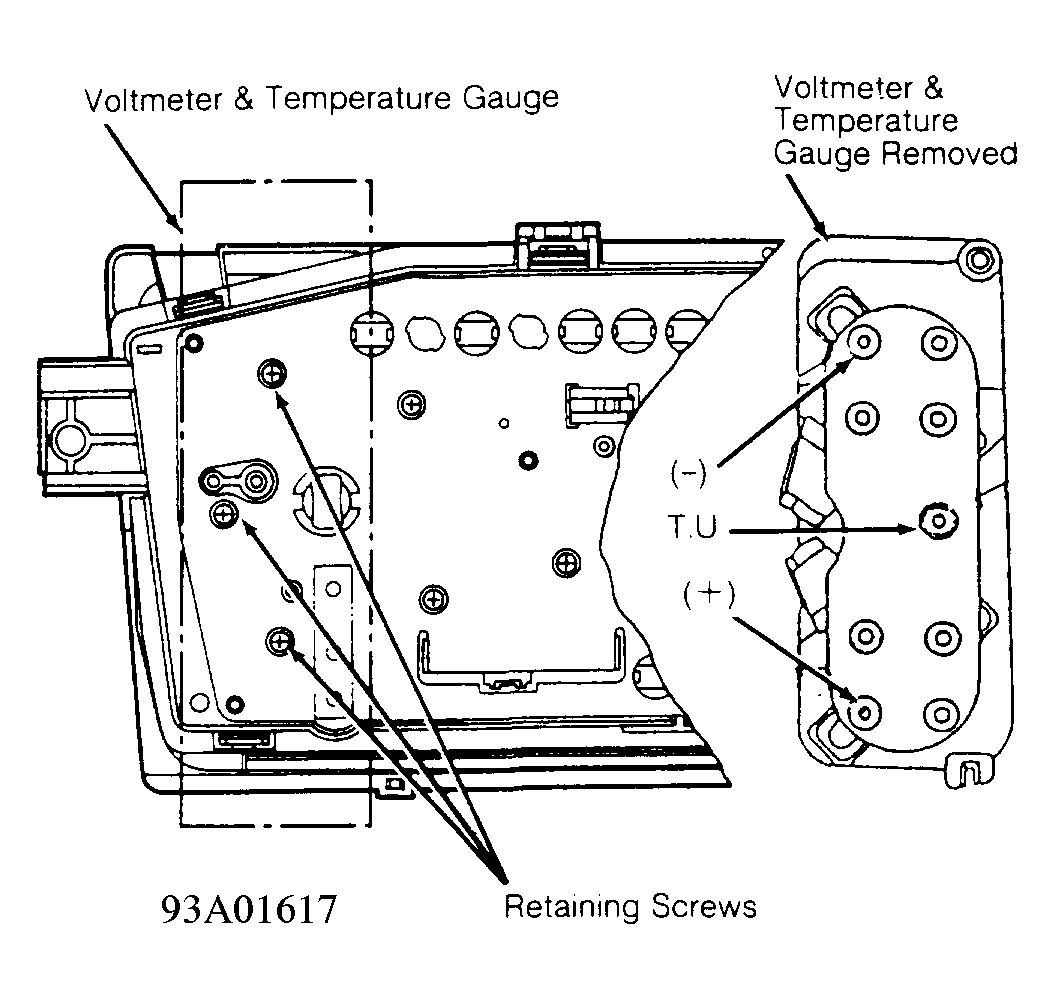

Fig 1: Testing Voltmeter (Amigo, Pickup & Rodeo)
G103035Courtesy of ISUZU MOTOR CO.
