Power Window Relay

Remove power window relay (located in fuse box at left side of instrument panel). Using an ohmmeter, check continuity between relay terminals No. 2 and 4. SeeFig 1 . Continuity should not exist. Apply battery voltage to terminal No. 1, and ground terminal No. 3. Continuity should exist between terminals No 2 and 4. If relay does not test as described, replace relay.

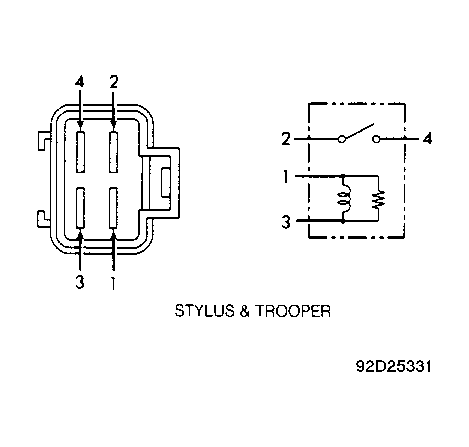

Fig 1: Power Window Relay Terminal
G92D25331Courtesy of ISUZU MOTOR CO.
