Power Window Switch Continuity (Driver's Side Switch)
- Remove switch from door trim panel. Disconnect power window switch harness connector. Using an ohmmeter, check continuity between specified switch terminals with power window switch in specified position. See DRIVER'S POWER WINDOW SWITCH CONTINUITY CHART .

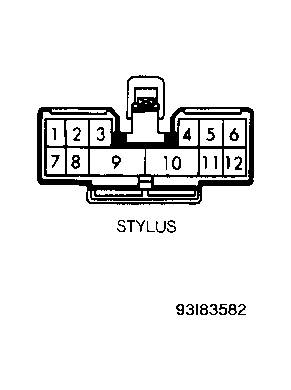

- For switch terminal identification, seeFigure . If continuity is not as specified, replace appropriate switch.
DRIVER'S POWER WINDOW SWITCH CONTINUITY CHART
| Switch & Position | Check Continuity Between Terminals: | |
|---|---|---|
| Left Front | ||
| DOWN | 1 & 10; 2 & 9 | |
| OFF | 1 & 10; 2 & 10 | |
| UP | 1 & 9; 2 & 10 | |
| Right Front | ||
| DOWN | 7 & 10; 9 & 12 | |
| OFF | 7 & 10; 10 & 12 | |
| UP | 7 & 9; 10 & 12 | |
| Left Rear | ||
| DOWN | 8 & 10; 9 & 11 | |
| OFF | 8 & 10; 10 & 11 | |
| UP | 8 & 9; 10 & 11 | |
| Right Rear | ||
| DOWN | 3 & 10; 4 & 9 | |
| OFF | 3 & 10; 4 & 10 | |
| UP | 3 & 9; 4 & 10 | |
| Lock | ||
| OFF (Unlock) | 6 & 9 | |
| ON (Lock) | N/A | |
