Component Testing: Voltmeter

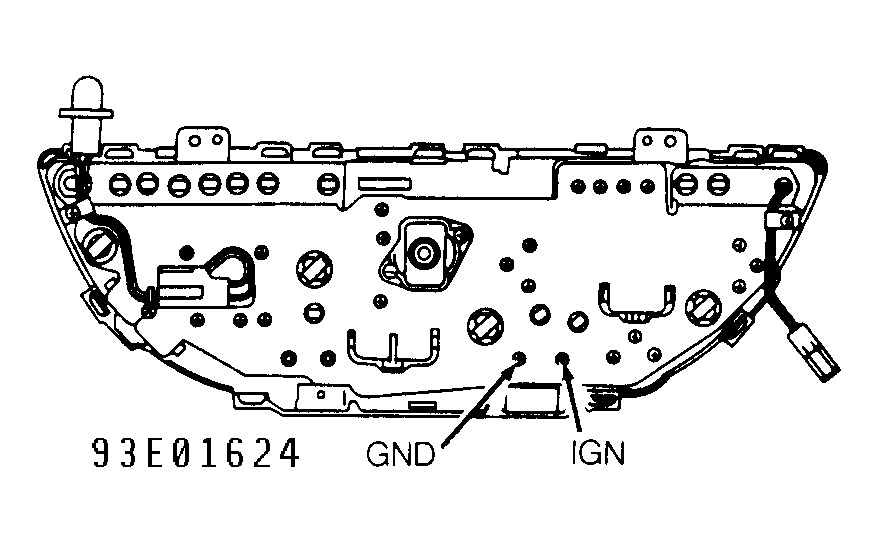

Disconnect battery negative cable. Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Using ohmmeter, measure resistance between IGN and GND terminals. SeeFig 1 . Resistance should be about 178 ohms. If resistance reading is not as specified, replace voltmeter.
