Home >> Isuzu >> 1993 >> Stylus Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - System/Component Tests - EFI >> Miscellaneous Controls >> A/C Clutch Control

A/C Clutch Control

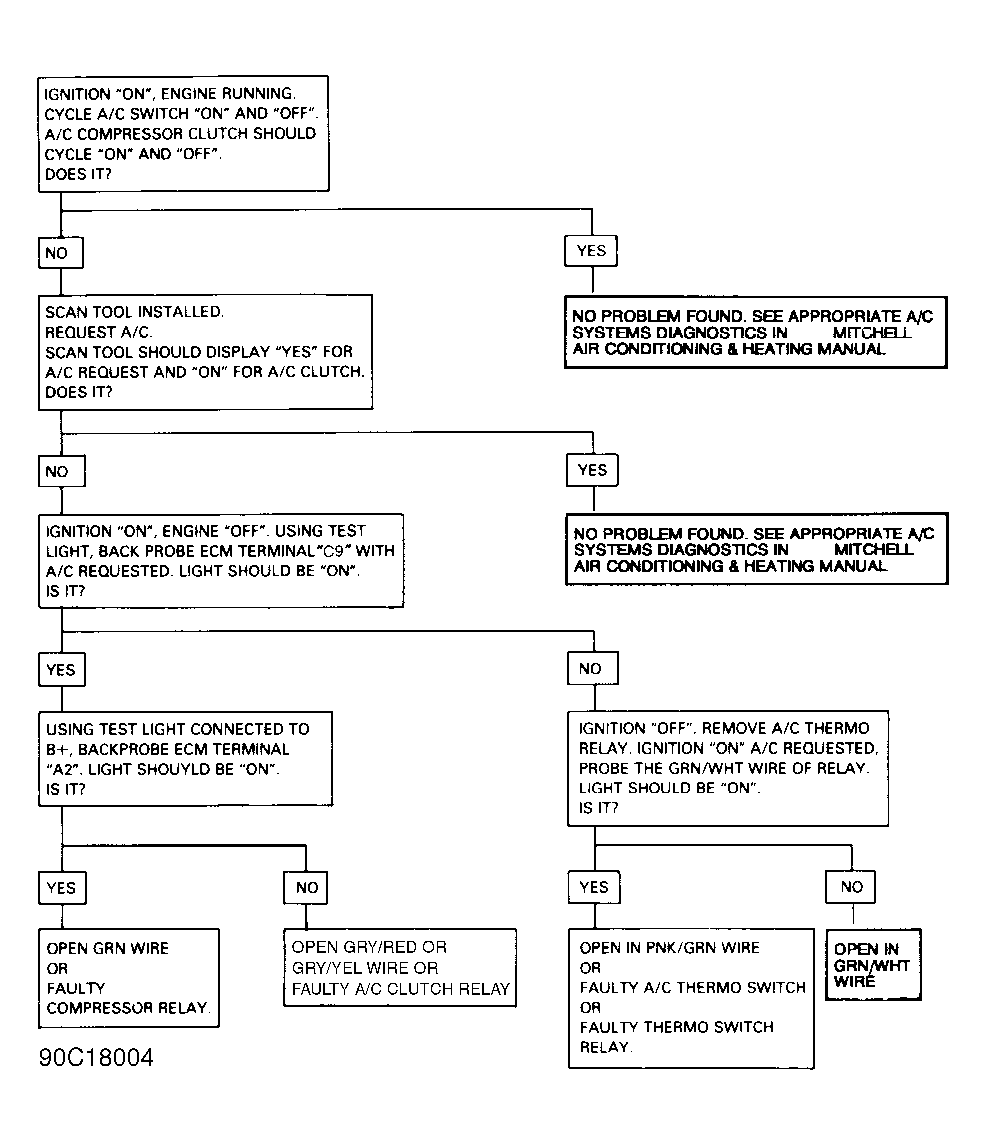

For diagnosis of A/C clutch control, see CHART C-10, A/C CLUTCH CONTROL DIAGNOSIS. See Figure and Figure .
