Headlight Switch

  1. Disconnect negative battery cable. Remove instrument cluster panel and disconnect all connectors. Pull headlight switch knob from switch. Release lock tabs in 2 places and remove switch bezel.
  2. Remove 2 switch screws, release 2 lock tabs from back side and remove headlight switch from rear of instrument cluster panel. Check for continuity between specified switch terminals. SeeFig 1 .

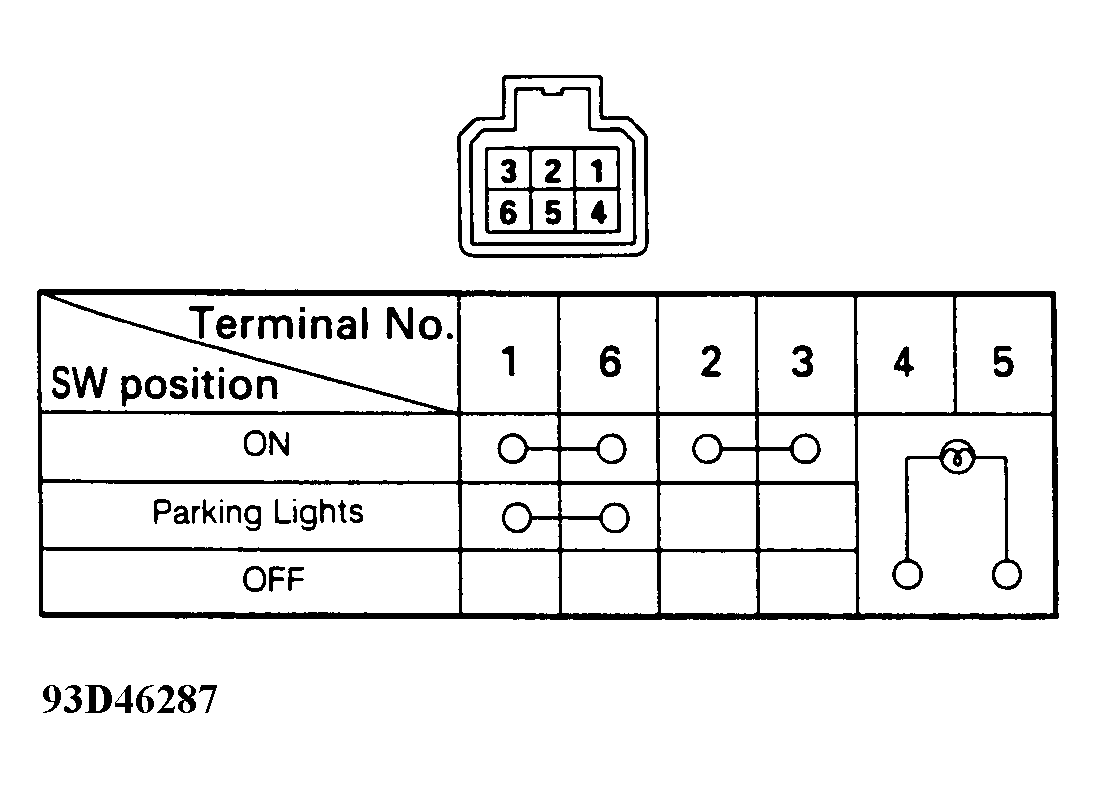

Fig 1: Testing Headlight Switch
G93D46287Courtesy of ISUZU MOTOR CO.
