Home >> Isuzu >> 1994 >> Amigo S, RWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes >> Code Charts >> Code 22 - Starter Signal

Code 22 - Starter Signal

NOTE: See appropriate wiring diagram in WIRING DIAGRAMS article for terminal and connector identification.

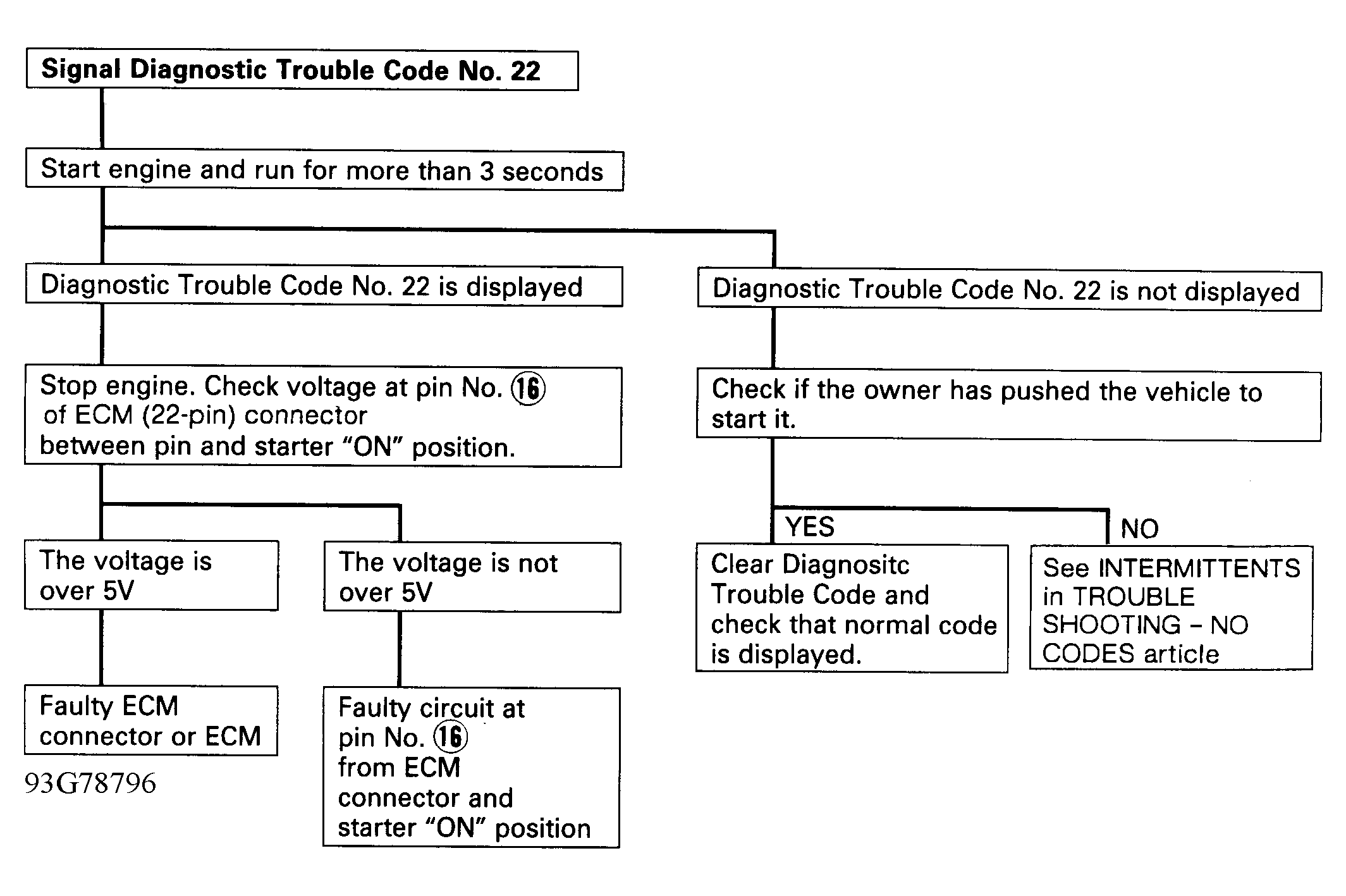

Fig 1: Code 22 - Diagnostic Flowchart

G93G78796

Courtesy of ISUZU MOTOR CO.
